Start here

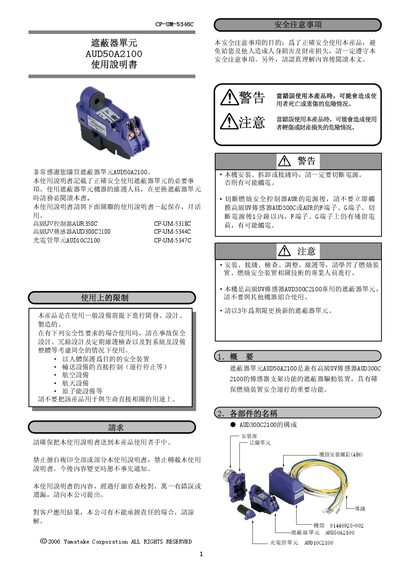

Yamatake AUD50A2100 Shielding Unit User Manual
The AUD50A2100 shielding unit is a safety device used with the advanced UV sensor AUD300C2100. The manual explains the correct and safe use of the unit, including safety precautions, installation limits and required professional handling.
Detailed procedures cover removal and replacement of the shielding unit, wiring of the F, G and S terminals, voltage verification, torque specifications, and final re‑assembly steps to ensure proper operation and sealing. This manual is written in Chinese.
Yamatake AUD50A specifications
| Operating DC voltage (F‑G terminals) | 160 V–220 V DC |
|---|---|
| Sensor voltage (S1‑S2 terminals) | 15 V–24 V DC |
| Torque for terminal screws | 0.7 N·m |
| Service life | 3 years |
All Yamatake AUD50A documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What torque should be applied to the terminal screws during installation?
The terminal screws should be tightened to a torque of 0.7 N·m.
How often should the shielding unit be replaced?
The shielding unit should be replaced every 3 years.
How can I verify that the shielding unit wiring is correct?
Measure the DC voltage between the F and G terminals; a correct wiring shows 160 V–220 V DC.
What torque should be applied to the terminal screws?
The terminal screws must be tightened to a torque of 0.7 N·m.
