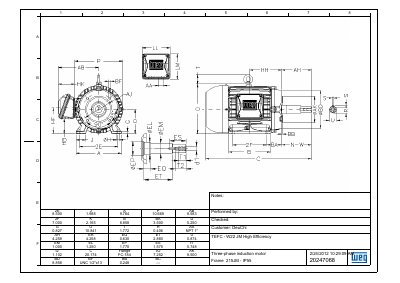

WEG GERMANY MOTOR 10HP 2P 215JM WFF2 technology data
Datasheet 1 pages · 51 KB · EN
This document provides technical specifications for a WEG three-phase induction motor with frame size 215JM. The unit is designed as a high-efficiency model (TEFC - W22) and features an IP55 protection rating.
The data sheet includes dimensional information, mounting details, and electrical characteristics necessary for the installation and integration of this specific motor model.
WEG WFF2 specifications
| Output Power | 5 HP (3,7 kW) |
|---|---|
| Product Line | W22 - NEMA PREMIUM EFFICIENCY |
| Frame Size | 184T |
| Enclosure Type | IP55 (TEFC) |
| Frequency | 50 Hz |
| Poles | 2 |
| Rated Speed | 2870 rpm |
All WEG WFF2 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What type of motor is the WEG 215JM?
The product is a three-phase induction motor.
What are the stated efficiency and cooling class ratings for this motor?
This unit has a TEFC - W22 High Efficiency rating.
What is the rated output of this motor?
The motor has a rated output of 5 HP, which is equivalent to 3.7 kW.
What is the maximum ambient temperature for operation?
The motor is designed for an ambient temperature range up to +40°C.
