Key facts
- Brand
- VIA
- Model
- K8T800 Pro
- Documents
- 2
- Languages
- EN
- Last added
- 2012-04-09
Start here

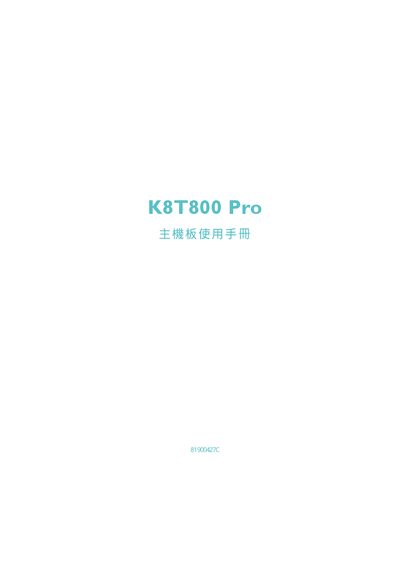

VIA K8T800 Pro Motherboard User Manual
This manual covers the installation and configuration of the VIA K8T800 Pro motherboard, including BIOS setup, power‑management options, and hardware interfaces such as LAN, USB, and IEEE‑1394. It also contains FCC compliance notices and troubleshooting tips for radio‑frequency interference.
Detailed sections describe standard CMOS features, advanced BIOS options, integrated peripherals, and supported memory types, helping users optimize system performance and ensure proper operation under Windows operating systems.
VIA K8T800 Pro specifications
| CPU socket | Socket 754 |
|---|---|
| North bridge chipset | VIA K8T800 Pro |
| South bridge chipset | VIA VT8237 |
| Memory slots | Two 84‑pin DDR DIMM sockets |
| Maximum memory | 2 GB DDR SDRAM (PC2100/PC2700/PC3200) |
| SATA interfaces | Two SATA 1.0 ports (1.5 Gbps) with RAID 0, RAID 1, JBOD |
| Power management | ACPI support with Suspend‑to‑RAM (ACPI STR) |
All VIA K8T800 Pro documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What CPU socket does the K8T800 Pro board use?
The board uses a Socket 754 for AMD Athlon™ 64 processors.
How many DDR memory slots are provided and what is the maximum supported memory?
It has two 84‑pin DDR DIMM sockets and supports up to 2 GB of unbuffered DDR SDRAM.
