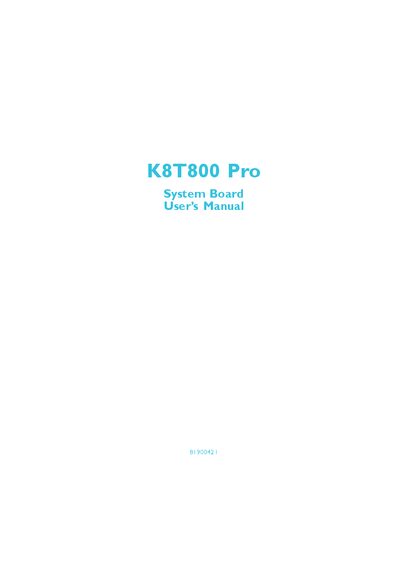

This manual provides detailed information about the K8T800 Pro system board. It includes installation instructions, hardware configuration, boot sequence, BIOS settings, troubleshooting, etc.
This manual covers safety precautions, hardware installation, BIOS configuration, and troubleshooting for the VIA K8T800 Pro system board. It includes warnings about electrical shock, battery handling, and FCC compliance, as well as instructions for accessing the digital manual via the included CD.
The document details the board's features such as the VIA K8T800 Pro north bridge, VIA VT8237 south bridge, optional Gigabit Ethernet, dual SATA ports with RAID support, ACPI power management, and audio capabilities. Appendices provide guidance on Suspend‑to‑RAM, error messages, and a troubleshooting checklist.
| CPU socket | Socket 754 |
|---|---|
| North bridge chipset | VIA K8T800 Pro |
| South bridge chipset | VIA VT8237 |
| Memory slots | Two 84‑pin DDR DIMM sockets |
| Maximum memory | 2 GB DDR SDRAM (PC2100/PC2700/PC3200) |
| SATA interfaces | Two SATA 1.0 ports (1.5 Gbps) with RAID 0, RAID 1, JBOD |
| Power management | ACPI support with Suspend‑to‑RAM (ACPI STR) |
The board uses a Socket 754 for AMD Athlon™ 64 processors.
It has two 84‑pin DDR DIMM sockets and supports up to 2 GB of unbuffered DDR SDRAM.
