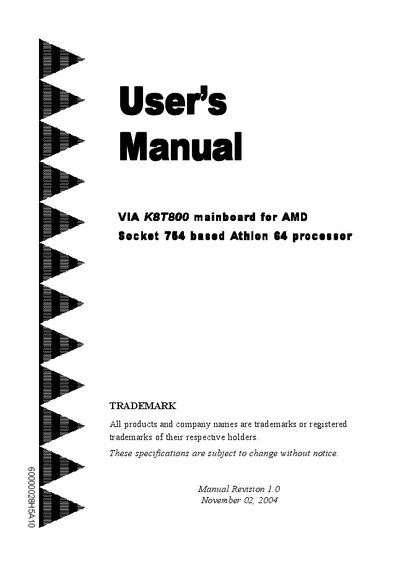

VIA K8T800 mainboard for AMD socket 754 based athlon 64 processor Manual Revision 1.0
The VIA K8T800 mainboard manual provides detailed information on installation, BIOS configuration, and troubleshooting for systems built around AMD Socket 754 Athlon 64 CPUs. It includes package contents, board layout, jumper settings, and step‑by‑step procedures for assembling the system.
Additional sections cover BIOS setup, integrated RAID features, power‑on/off functions, and extensive appendices with POST code references and low‑level hardware initialization details.
VIA K8T800 specifications
| Chipset | VIA K8T800/K8M800+VT8237 |
|---|---|
| Supported processors | AMD K8/ClawHammer, AMD Athlon 64 |
| Memory type | Two 184‑pin DDR SDRAM sockets, DDR400/333/266, up to 2 GB |
| SATA data rate | 150 Mb/s |
| USB ports | Eight USB2.0 ports |
| AGP support | AGP 3.0, 4X/8X |
| LAN interface | 10/100 Mbps Ethernet |
Source: VIA K8T800/K8M800+VT8237 Chipset Motherboard User Manual
All VIA K8T800 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many USB ports does the motherboard provide?
The motherboard provides eight USB2.0 ports.
From: VIA K8T800/K8M800+VT8237 Chipset Motherboard User Manual
What type of memory sockets are on the board and what memory sizes are supported?
The board has two 184‑pin DDR SDRAM sockets supporting DDR400/DDR333/DDR266 modules from 64 MB up to 2 GB.
From: VIA K8T800/K8M800+VT8237 Chipset Motherboard User Manual
What should be done if POST code 26h appears?
Clear the CMOS or press the insert key to power on the system to resolve an overclock error.
From: VIA K8T800 mainboard for AMD socket 754 based athlon 64 processor Manual Revision 1.0
