Start here

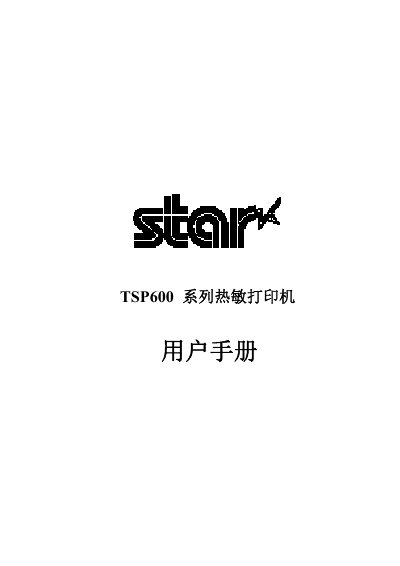

Star Micronics TSP600 Series Thermal Printer User Manual
This manual provides detailed instructions for installing and operating the TSP600 Series thermal receipt printer, including component descriptions, power requirements, and connection methods. It also explains how to load paper, adjust sensors, prevent and clear jams, and perform regular cleaning.
Appendices contain full technical specifications, DIP switch settings, interface wiring diagrams, and optional accessories, helping technicians and end‑users configure the printer for various POS environments. This manual is written in Chinese.
Star Micronics TSP600 specifications
| Printing method | Direct thermal |
|---|---|
| Maximum printing speed | 800 dots/s (100 mm/s) |
| Resolution | 203 dpi (8 dots/mm) |
| Maximum print width | 72 mm |
| Supported paper width | 79.5 ± 0.5 mm (optional 57.5 ± 0.5 mm) |
| Paper roll diameter | ≤ 90 mm |
| Overall dimensions (W×D×H) | 142 mm × 199 mm × 132 mm |
| Weight | ≈ 1.4 kg |
| Operating noise | 53 dB (auto‑cutter) / 49 dB (tear‑paper) |
| Cutting frequency (auto‑cutter mode) | up to 20 cuts/min |
| Input voltage | DC 24 V ± 10 % |
| Operating current | ≈ 1.3 A (typical) |
| Optional AC adapter model | PS60-24A, 100‑240 V AC, 24 V DC ± 5 %, 2.0 A |
Source: Star Micronics TSP600 Series Thermal Printer User Manual
All Star Micronics TSP600 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What paper thickness is recommended for the TSP600?
The printer is designed for thermal paper with a thickness of 65 µm to 85 µm.
From: Star Micronics TSP600 Series Thermal Printer User Manual
How can a paper jam be cleared?
Open the cover, locate the jammed paper, and follow the steps in section 7‑2 ‘清除卡纸’ to remove it safely.
From: Star Micronics TSP600 Series Thermal Printer User Manual
