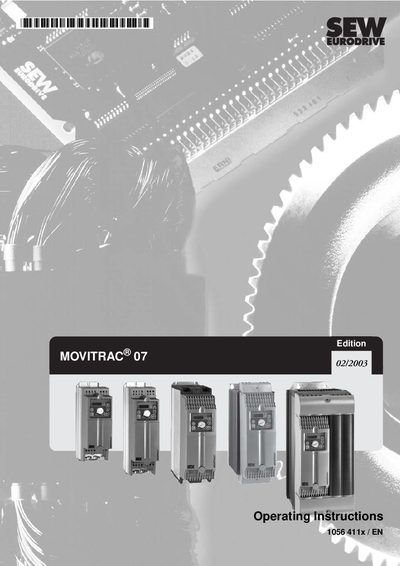

SEW MOVITRAC-07 Frequency Inverter Operating Instructions
These operating instructions cover safety and warning information, unit structure, installation, startup, and servicing of the MOVITRAC‑07 frequency inverter. They include detailed wiring diagrams, connection references, and required protective measures such as grounding and over‑current protection.
The manual also lists technical data, certification marks (CE, UL, C‑Tick), available unit sizes, and a fault list. It is intended for trained personnel who will install, commission, and maintain the inverter in industrial applications.
SEW MOVITRAC-07 specifications
| Voltage Rating | 230 V |
|---|---|
| Power Capacity Range | 1000 VA to 3000 VA |
| Operating Temperature | 0°C-40°C (32°F-104°F) |
| Relative Humidity | 0%—95%, non-condensing |
All SEW MOVITRAC-07 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What type of fire extinguisher should be used for this UPS?
Use a dry chemical fire extinguisher; using a fluid fire extinguisher may cause electric shock.
Can I service this UPS myself?
No, all UPS and battery service must be performed by properly trained and qualified service personnel.
Can standard design MOVITRAC 07 units operate as masters?
No, units in standard design can only be operated as slaves.
What is the factory setting for the SBus baud rate?
The factory setting for the baud rate is 500 kbaud.
How can the motor be prevented from starting automatically when the inverter is switched on?
Connect binary inputs DIO1 through DI03 to ground (GND) to inhibit automatic motor start.
From: SEW MOVITRAC-07 Frequency Inverter Operating Instructions
What are the available unit sizes for the MOVITRAC‑07?
The inverter is offered in sizes 0S, OM, OL and also in sizes 1, 2S, 2.
From: SEW MOVITRAC-07 Frequency Inverter Operating Instructions
