Key facts
- Brand
- ResMed
- Model
- HumidAire 2i
- Category
- Health Care
- Industry
- Health
- Documents
- 3
- Languages
- JA · EN
- Last added
- 2011-11-16
Start here

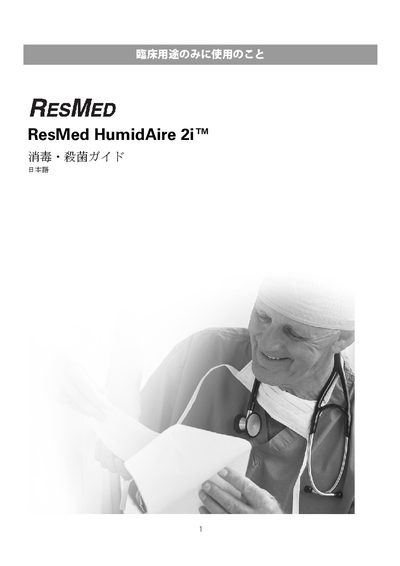

ResMed HumidAire 2i Disinfection and Sterilization Guide
This guide provides the recommended procedures for cleaning, disinfecting and sterilizing the HumidAire 2i chamber in clinical settings. It covers four options ranging from manual cleaning with high‑heat disinfection to automatic cleaning and chemical or steam disinfection.
The document also includes step‑by‑step disassembly and reassembly instructions, storage recommendations, and troubleshooting tips for water leaks after reassembly. This manual is written in Japanese.
ResMed HumidAire 2i specifications
| Storage temperature range | -20 °C to 60 °C |
|---|---|
| High‑heat disinfection temperature 1 | 132 °C, hold 3 min |
| High‑heat disinfection temperature 2 | 121 °C, hold 30 min |
| Cleaning solution concentration (Option 1 & 2) | Neodisher Med1Zym 2 % dilution |
Source: ResMed HumidAire 2i Disinfection and Sterilization Guide
All ResMed HumidAire 2i documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
What are the recommended temperature and time for high‑heat disinfection?
Use either 132 °C for a 3‑minute hold or 121 °C for a 30‑minute hold, depending on the equipment’s capability.
From: ResMed HumidAire 2i Disinfection and Sterilization Guide
How should the chamber be stored after cleaning?
Store it in a dry, dust‑free place away from direct sunlight, at temperatures between –20 °C and 60 °C.
From: ResMed HumidAire 2i Disinfection and Sterilization Guide
Which cleaning solution is recommended for the HumidAire 2i?
The recommended cleaning solution is Neodisher MediZym at a 2 % concentration.
What cleaning solution is recommended for the HumidAire 2i?
The guide recommends using Neodisher MediZym at a 2% concentration.
What alternative cleaning agent can be used with the HumidAire 2i?
Alconox at a 1% concentration is listed as an alternative cleaning agent.
