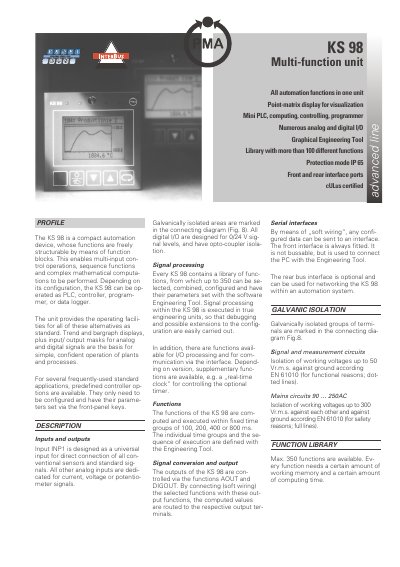

PMA KS 98 Multi-function Automation Device Profile
The PMA KS 98 is a compact automation device designed for multi-input control operations, sequence functions, and complex mathematical computations. It can be configured to operate as a PLC, controller, programmer, or data logger depending on the application requirements.
The unit features a library of over 100 different functions that can be selected from up to 350 available options using the Engineering Tool software. Signal processing is executed in true engineering units, and the device includes operating facilities such as trend displays, bargraphs, and input/output masks for analog and digital signals.
PMA KS 98 specifications
| Max. selectable functions | 350 |
|---|---|
| Protection mode | IP 65 |
| Input signal levels (Digital I/O) | 0/24 V |
| Mains voltage range | 90 ... 250 AC |
| Isolation of working voltages (Signal/measurement) | up to 50 Vrms against ground |
All PMA KS 98 documents by type
Questions answered in these manuals
What functions can the KS 98 perform?
It performs multi-input control operations, sequence functions, and complex mathematical computations.
Can the KS 98 operate as a PLC?
Yes, depending on its configuration, it can be operated as a PLC, controller, programmer, or data logger.
What is the maximum number of parties recommended on the CANbus?
We recommend a maximum of 6 parties on the CANbus (1 master and 5 slaves).
Can the KS 98-1 units communicate with each other?
Yes, local data exchange with other KS98 and KS98-1 units is possible via the CANopen protocol.
