Start here

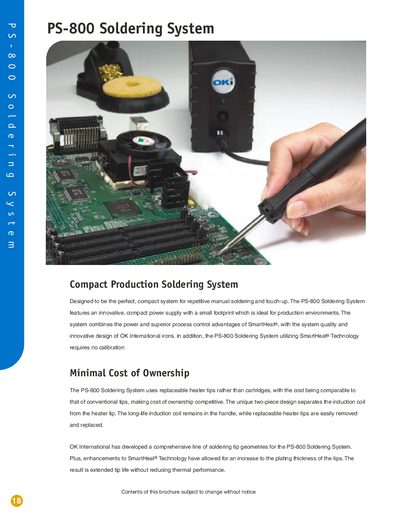

OKI PS-800 Soldering System Product Leaflet
The OKI PS-800 Soldering System is a compact production soldering solution that combines SmartHeat® technology with a small‑footprint power supply. It offers replaceable heater tips, an induction coil design and a range of tip geometries for lead‑free hand soldering.
The brochure provides technical specifications, a list of accessories, spare parts and a detailed catalog of heater tips, helping users select the right configuration for their production environment.
OKI PS-800 specifications
| Ambient Operating Temperature | 10 - 40°C |
|---|---|
| Maximum Enclosure Temperature | 65°C |
| Input Line Voltage | 90 - 240 VAC |
| Input Line Frequency | 50/60 Hz |
| Power Consumption | 50 Watts max. |
| Output Power | 35 Watts max. at 22°C ambient |
| Output Frequency | 470 KHz |
| Power Cord Length | 183 cm (72") |
| Dimensions (W x D x H) | 70 mm x 161 mm x 100 mm |
All OKI PS-800 documents by type
Questions answered in these manuals
What technology does the PS-800 use that eliminates the need for calibration?
The PS-800 uses SmartHeat® Technology, which requires no calibration.
Why does the PS-800 use replaceable heater tips?
Replaceable heater tips lower the cost of ownership and can be easily removed and replaced.
What accessory upgrades the PS-800 for lead‑free soldering?
The PS-CA2 Coil Assembly upgrades the PS-800 Soldering System for full lead‑free capability.
Which Power Heater Tips are compatible with the PS-CA2 Coil Assembly?
OK International’s line of large‑diameter, high‑power Power Heater Tips are compatible with the PS-CA2 Coil Assembly.
