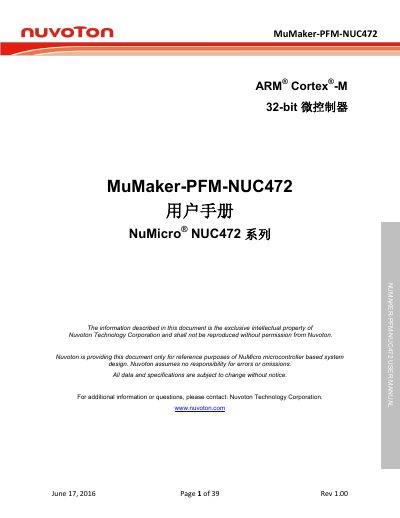

Nuvoton NuMaker-PFM-NUC472 User Manual
The Nuvoton NuMaker-PFM-NUC472 is a development board based on the NUC472 microcontroller featuring an ARM Cortex-M4 core. It supports the ARM mbed IoT platform and includes a rich set of external interfaces for various applications.
The board integrates the NUC472 MCU platform with a Nu-Link-MB ICE debugger. It offers Arduino UNO compatible interfaces to facilitate development using the Arduino ecosystem, along with detailed pinout information and connection diagrams for peripherals such as RS232, CAN, and MicroSD. This manual is written in Chinese.
Nuvoton NuMaker-PFM-NUC472 specifications
| Microcontroller Core | ARM Cortex-M4 |
|---|---|
| Clock Speed | 84 MHz |
| Flash Memory | 512KB |
| SRAM | 64KB |
| Operating Voltage | 2.5 V to 5.5 V |
| GPIO Count | 114 |
All Nuvoton NuMaker-PFM-NUC472 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What platform does the NuMaker-PFM-NUC472 support?
The board supports the ARM mbed IoT platform.
Is the board compatible with Arduino?
Yes, it provides interfaces compatible with Arduino UNO.
What is the purpose of the NuMaker-PFM-NUC472 board?
It is a development board created to support the ARM mbed IoT Device Platform and allow users to easily develop IoT application programs.
From: Nuvoton NuMaker-PFM-NUC472 Development Board User Manual
What are the key features of the NUC472 Series MCU?
Key features include a Cortex-M4 core running up to 84 MHz, built-in LDO for 2.5V-5.5V operation, 512 Kbytes Flash, and various peripherals like UART, SPI, I2C, and Ethernet.
From: Nuvoton NuMaker-PFM-NUC472 Development Board User Manual
