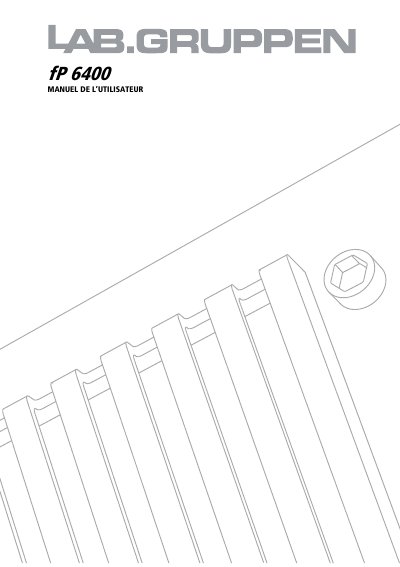

Lab.gruppen fP 6400 Power Amplifier User Manual
This document is the French user manual for the Lab.gruppen fP 6400 convertible power amplifier. It provides comprehensive instructions on unpacking, front and rear panel functions, and various operating modes including stereo, parallel, and bridged mono configurations.
The guide details installation procedures such as mounting in a 19-inch chassis, grounding requirements, and cooling considerations. It also covers connectivity for symmetrical and asymmetrical inputs, speaker connections, and the specific protection features like thermal shutdown and short-circuit protection. This manual is written in French.
Lab.gruppen fP 6400 specifications
| Operating Temperature Limit | 90°C |
|---|---|
| VHF Protection Threshold | 12 kHz |
| Input Voltage Range | 100-120V |
| Safety Standard (US) | ANSI/UL 6500 |
| Safety Standard (Canada) | CSA E60065-00 |
All Lab.gruppen fP 6400 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- LAB.GRUPPEN fP 6400 Operation Manual (115 V) 20 p
- LAB.GRUPPEN fP 6400 Operation Manual(3) 20 p
- Lab.gruppen fP 6400 Power Amplifier User Manual 21 p
- Lab.gruppen fP 6400 Power Amplifier User Manual 21 p
- Lab.gruppen fP 6400 Power Amplifier User Manual 22 p
- Lab.gruppen fP 6400 Power Amplifier User Manual 20 p
- Lab.gruppen fP 6400 Power Amplifier User Manual 20 p
Questions answered in these manuals
Can the amplifier be used with a broken power cord?
No, the unit should not be used if the power cord is broken or frayed.
What is the maximum operating temperature of this amplifier?
The over temperature protect indicator illuminates if the amplifier is going to operate above its maximum operating temperature of 90°C.
What happens if the amplifier temperature reaches its maximum limit?
The input signal is automatically attenuated to allow for cooling. The signal resumes once the temperature drops.
How does the short-circuit protection indicator behave?
The LED glows dimly when disabled and brightly when enabled.
What happens if the amplifier overheats?
The amplifier will mute the input signal until the thermal dissipation returns to normal operating temperature.
Can I connect amplifier outputs in parallel?
No, you should not connect an amplifier output in parallel or series with another amplifier output.
