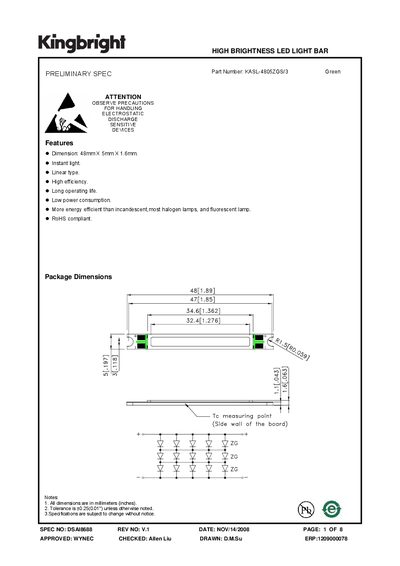

Kingbright KASL-4805ZGS/3 Green LED Light Bar Preliminary Spec
The KASL-4805ZGS/3 Green LED light bar is a linear, high‑efficiency device with dimensions of 48 mm × 5 mm × 1.6 mm. It offers instant light, low power consumption, and a long operating life while complying with RoHS regulations.
The document provides detailed absolute maximum ratings, electrical and optical characteristics, handling precautions, packaging information, and an application note describing proper thermal‑grease application and heat‑sink attachment for reliable operation.
Kingbright KASL-3 specifications
| Dimension | 48 mm × 5 mm × 1.6 mm |
|---|---|
| Forward Current | 350 mA |
| Power Dissipation | 4.55 W |
| LED Junction Temperature | 110 °C |
| Operating Temperature | -30 °C ~ +100 °C |
| Storage Temperature | -40 °C ~ +110 °C |
| Dominant Wavelength | 525 nm |
Source: Kingbright KASL-4805ZGS/3 Green LED Light Bar Preliminary Spec
All Kingbright KASL-3 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What soldering iron power and temperature are recommended for the LED light bar?
The soldering iron power should not exceed 40 W and the maximum soldering temperature should be less than 350 °C.
From: Kingbright KASL-4805ZGS/3 Green LED Light Bar Preliminary Spec
How should the LED light bar be attached to a heat sink?
Apply a thin layer (0.1 ~ 0.2 mm) of thermal grease on the bottom of the light bar and press it firmly onto the heat sink to ensure good contact.
From: Kingbright KASL-4805ZGS/3 Green LED Light Bar Preliminary Spec
What soldering iron power and contact time are recommended?
The soldering iron power should not exceed 40 W and the tip should not stay on a joint for more than 3.5 seconds.
From: Kingbright KASL-4805QBFS/3 Blue High Brightness LED Light Bar Application Note
