Key facts
- Brand
- Infinity
- Model
- C51PV-M2
- Documents
- 2
- Languages
- EN
- Last added
- 2012-03-22
Start here

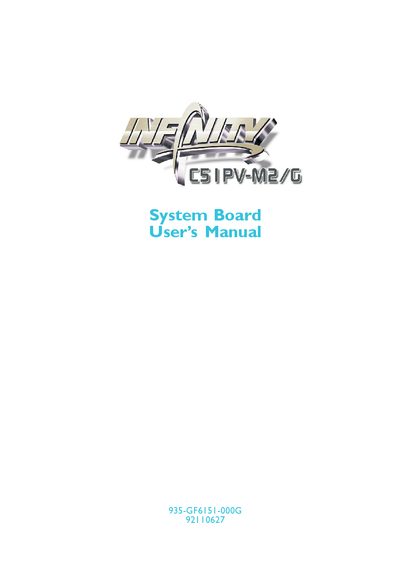

C51PV-M2/G System Board User Manual
This manual covers safety warnings, warranty information, and handling precautions for the C51PV-M2/G system board. It explains electrostatic discharge (ESD) protection, proper AC power usage, and steps to avoid damage during installation and servicing.
The document also details the board’s hardware specifications, including supported processors, chipset, memory configuration, expansion slots, BIOS, power‑management features, and integrated graphics. It provides guidance for BIOS configuration, driver installation, and troubleshooting common issues such as hard‑drive detection and peripheral setup.
Infinity C51PV-M2 specifications
| Supported processors | AMD Athlon 64 X2, Athlon 64 FX, Athlon 64, Sempron |
|---|---|
| Chipset | NVIDIA GeForce 6150 north bridge, nForce 430 MCP south bridge |
| Memory slots | Four 240‑pin DDR2 DIMM sockets, up to 4 GB |
| Maximum memory | 4 GB system memory |
| Expansion slots | PCI Express x16, PCI Express x1, 2 PCI slots |
| BIOS type | Award BIOS with 4 Mbit flash |
| Power management features | ACPI STR (Suspend to RAM), Wake‑On‑LAN, Wake‑On‑USB |
All Infinity C51PV-M2 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What precautions should be taken to avoid electrostatic discharge when handling the board?
Keep the board in its anti‑static bag until installation, wear an antistatic wrist strap, work on a static‑free surface, and handle the board by its edges only.
How many DDR2 memory modules can be installed on the C51PV‑M2/G board?
The board provides four 240‑pin DDR2 DIMM sockets, allowing up to four memory modules for a maximum of 4 GB of system memory.
What should be done if the equipment causes harmful radio interference?
Reorient or relocate the receiving antenna, increase separation from the receiver, connect to a different circuit, or consult a radio/TV technician.
What type of cables must be used to comply with emission limits?
Shielded interface cables must be used.
