Key facts
- Brand
- Hanna Instruments
- Model
- HI 98331
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-10
Start here

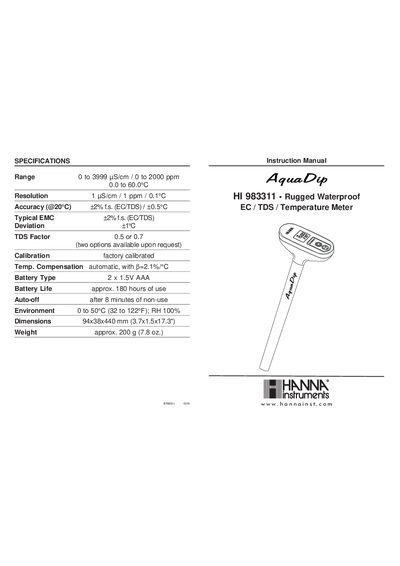

Hanna Instruments HI 983311 Rugged Waterproof EC/TDS/Temperature Meter Instruction Manual
This document is an instruction manual for the Hanna Instruments HI 983311 Rugged Waterproof EC/TDS/Temperature Meter. It provides operational guidance on switching the device on, selecting measurement modes (EC or TDS), reading values, freezing the display, and automatic shut-off features.
Read onlineHanna Instruments HI 98331 specifications
| Range (EC) | 0 to 3999 S/cm |
|---|---|
| Range (TDS) | 0 to 2000 ppm |
| Temperature Range | 0.0 to 60.0°C |
| Resolution (EC) | 1 uS/cm |
| Accuracy (@20°C) EC/TDS | +2% t.s. |
| Accuracy (@20°C) Temperature | +0.5°C |
| Battery Type | 2x 1.5V AAA |
| Dimensions | 94x38x440 mm |
| Weight | approx. 200 g |
Source: Hanna Instruments HI 983311 Rugged Waterproof EC/TDS/Temperature Meter Instruction Manual
All Hanna Instruments HI 98331 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I switch the meter on?
To switch the meter on, press the ON button.
From: Hanna Instruments HI 983311 Rugged Waterproof EC/TDS/Temperature Meter Instruction Manual
What does the ATC symbol mean?
The ATC symbol means that measurements are Automatically Temperature Compensated.
From: Hanna Instruments HI 983311 Rugged Waterproof EC/TDS/Temperature Meter Instruction Manual
What is included with the HI 98331 meter?
The instrument is supplied with an HI 73331 Penetration conductivity probe, four 1.5V batteries, and a calibration screwdriver.
From: Hanna Instruments HI 98331 Direct Soil Conductivity & Temperature Meter Instruction Manual
When must the instrument be recalibrated?
The instrument must be recalibrated whenever the conductivity probe is replaced, when high accuracy is required, or at least once a month.
From: Hanna Instruments HI 98331 Direct Soil Conductivity & Temperature Meter Instruction Manual
