Key facts
- Brand
- Hanna Instruments
- Model
- HI 95747
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-10
Start here

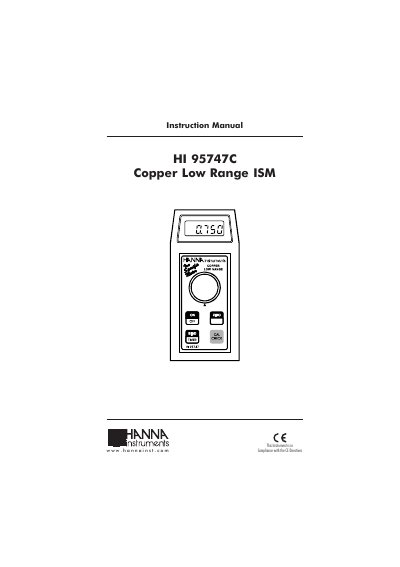

Hanna Instruments HI 95747C Copper Low Range ISM Instruction Manual
The HI 95747C is an auto-diagnostic portable microprocessor meter designed to measure free dissolved Copper (Cu) content in water samples within a range of 0.000 to 1.500 mg/L using the USEPA approved bicinchoninate method. The instrument features an advanced optical system with a tungsten lamp and narrow band interference filter, ensuring accurate and repeatable readings.
Read onlineHanna Instruments HI 95747 specifications
| Range | 0.000 to 1.500 mg/L |
|---|---|
| Resolution | 0.001 mg/L for measurement |
| Precision | +0.015 mg/L @ 0.750 mg/L |
| Light Source | Tungsten lamp with narrow band interference filter @ 560 nm |
| Battery Type | 1x9 volt |
| Dimensions | 180 x 83 x 46 mm (7.1 x 3.3 x 1.8") |
| Weight | 290 g (10 oz.) |
Source: Hanna Instruments HI 95747C Copper Low Range ISM Instruction Manual
All Hanna Instruments HI 95747 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the measurement range of the HI 95747C?
The meter measures free dissolved Copper content in water samples in the 0.000 to 1.500 mg/L (ppm) range.
From: Hanna Instruments HI 95747C Copper Low Range ISM Instruction Manual
What method does this instrument use for measurement?
The meter uses an adaptation of the USEPA approved bicinchoninate method.
From: Hanna Instruments HI 95747C Copper Low Range ISM Instruction Manual
What is the measurement range of the HI 95747?
The instrument measures copper concentrations from 0.000 to 7.500 mg/L.
From: Hanna Instruments HI 95747 Copper Low Range ISM Instruction Manual
How do I know if the battery is low?
The display will show a blinking 'BAT' prompt, indicating that the battery voltage is getting low and needs replacement.
From: Hanna Instruments HI 95747 Copper Low Range ISM Instruction Manual
