Key facts
- Brand
- Galanz
- Model
- WD800Y
- Category
- Microwave oven
- Industry
- Appliances
- Documents
- 5
- Languages
- ZH
- Last added
- 2012-03-14
Start here

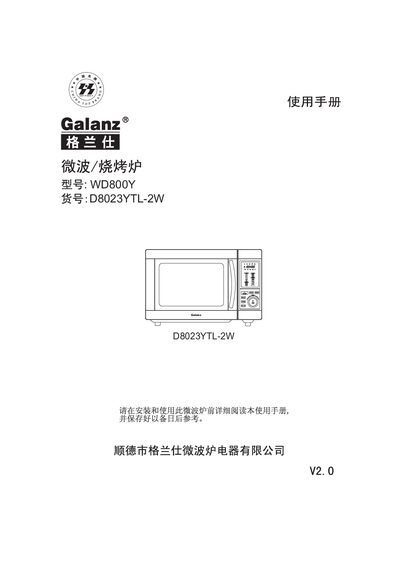

Galanz WD800Y Microwave Oven User Manual
The manual begins with safety guidelines, installation requirements, and product specifications for the Galanz WD800Y microwave/ grill oven. It details clearances, weight, and recommended placement, as well as the control panel layout and functions.
Subsequent sections describe cooking modes such as microwave, grill, and combined programs, how to set the clock, use the child lock, and perform routine cleaning and maintenance. Troubleshooting tips and usage notes are also included. This manual is written in Chinese.
Galanz WD800Y specifications
| Rated voltage and frequency | 220 V~, 50 Hz |
|---|---|
| Rated input power (microwave / grill) | 1300 W / 1050 W |
| Microwave output power | 800 W |
| Microwave frequency | 2450 MHz |
| External dimensions (H×W×D) | 305 mm × 508 mm × 420 mm |
| Cavity dimensions (H×W×D) | 215 mm × 350 mm × 330 mm |
| Cavity capacity | 23 L |
| Net weight | ≈ 16.5 kg |
| Effective turntable area | 0.077 m² |
| Effective cavity volume | 16 L |
All Galanz WD800Y documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How far should the microwave be placed from the walls?
The microwave should be at least 5 cm away from each side wall and at least 10 cm from the back wall.
How do I activate the child lock?
Press and hold the stop/cancel key for 3 seconds; the child‑lock indicator will light, disabling operation.
How far should the oven be placed from the walls?
Leave at least 5 cm on each side of the oven and at least 10 cm behind it.
How can I enable the child safety lock?
Press and hold the “停止/取消” key for 3 seconds; the child‑lock indicator will light up.
How far should the microwave be placed from surrounding walls?
The microwave should be at least 5 cm away from side walls and at least 10 cm from the back wall.
How do I activate the child lock?
Press and hold the Stop/Cancel key for 3 seconds; the child‑lock indicator light will turn on.
