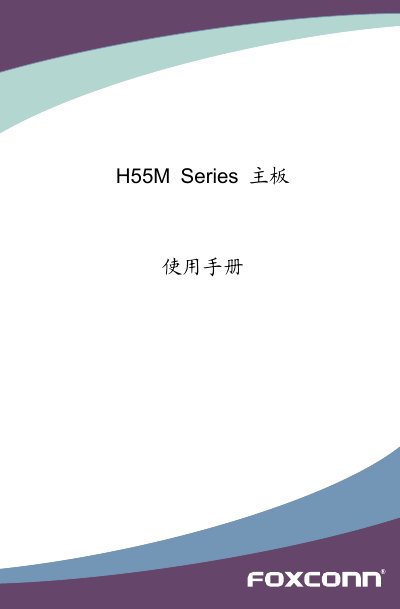

Foxconn H55M/H55M-S/H55M-V Motherboard User Manual
The Foxconn H55M series motherboard manual provides detailed information on product specifications, layout, rear panel connectors, and supported components. It includes safety warnings, environmental compliance statements, and a full table of contents for quick navigation.
The guide walks users through hardware installation steps such as CPU, memory and expansion card mounting, BIOS configuration, driver installation, and the use of Foxconn utilities like FOX LiveUpdate, FOX LOGO and FOX DMI. Technical support contacts and online resources are also listed. This manual is written in Chinese.
Foxconn H55M specifications
| CPU socket | LGA1156 |
|---|---|
| Chipset | Intel H55 |
| Memory slots | 4 x 240‑pin DDR3 DIMM |
| Maximum memory | 16 GB (dual‑channel DDR3 1600/1333/1066 MHz) |
| Expansion slots | 1 × PCI Express x16, 1 × PCI Express x1, 2 × PCI |
| SATA ports | 6 × SATA (300 MB/s, hot‑plug, NCQ) |
| USB ports | 12 × USB 2.0 (6 rear, 6 board) |
| Audio codec | Realtek ALC662 / ALC888S (HD Audio, 2/4/5.1/7.1, S/PDIF) |
| Network controller | Realtek RTL8111DL Gigabit Ethernet |
| Form factor | Micro ATX 24.4 cm × 22.9 cm |
All Foxconn H55M documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which CPUs are supported by the H55M motherboard?
The board supports Intel CPUs that use the LGA1156 socket with a maximum power consumption of 95 W.
How many USB ports does the motherboard provide?
It provides a total of 12 USB 2.0 ports – six on the rear panel and six via board‑mounted connectors.
How can I update the firmware with FOX LiveUpdate?
Enable the ‘auto search FOX LiveUpdate’ option; the program will check the Internet for newer versions and prompt you to install them.
