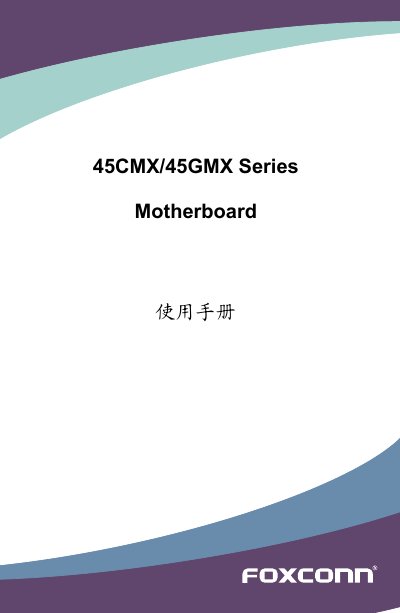

Foxconn 45CMX/45GMX Motherboard Chinese User Manual
This manual provides safety instructions and handling precautions for the 45CMX/45GMX series motherboard, including ESD protection, power‑off requirements, and recommended fan usage before any hardware installation. It also details the layout of the board, connector pin‑outs, and the steps for installing the CPU, memory, expansion cards, and other internal devices.
The guide walks the user through BIOS navigation, advanced settings, and password configuration, and introduces utility programs such as FOX LOGO for customizing the boot logo and FOX DMI for accessing BIOS‑level system information. Regulatory compliance statements and FCC/EN standard references are included for reference. This manual is written in Chinese.
Foxconn 45GM specifications
| Form factor | uATX, 244 mm × 224 mm |
|---|---|
| Chipset | Intel 945G/GC + ICH7/ICH7R |
| CPU socket | LGA775, supports Intel Core2 Extreme, Core2 Duo, Pentium D, Pentium 4, Celeron D |
| USB ports | 8 USB 2.0 ports |
| LAN | 10/100/1000 Mbps Ethernet (optional) |
| Expansion slots | 2 PCI, 1 PCI Express x1, 1 PCI Express x16 |
All Foxconn 45GM documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the form factor and size of the 45GM/45CM motherboard?
It is a uATX board measuring 244 mm by 224 mm.
Which CPUs are supported by this motherboard?
The board supports LGA775 processors including Intel Core 2 Extreme, Core 2 Duo, Pentium D, Pentium 4, and Celeron D.
How can I change the boot logo on the Foxconn motherboard?
Run the FOX LOGO program, select a 1024 × 768 JPG image, and enable “Full Screen Logo Show” in the BIOS to apply the new logo.
Which regulatory standards does the 45CMX/45GMX motherboard comply with?
It complies with EN 55022, EN 61000‑3‑2, EN 61000‑3‑3, EN 55024, and FCC Part 15 Class B requirements.
