Start here

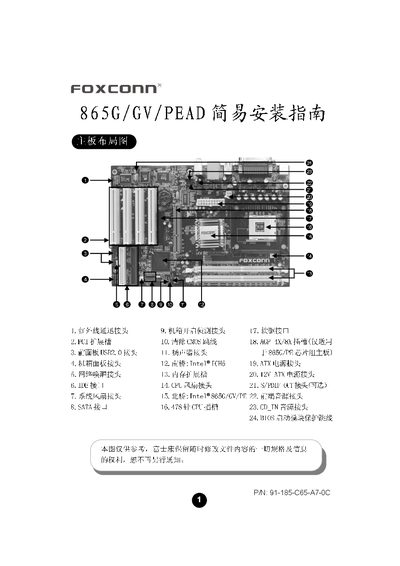

Foxconn 865G/GV/PEAD Motherboard Installation Service Manual
The manual describes the layout, connectors, jumpers and BIOS settings required to install and configure the Foxconn 865G/GV/PEAD motherboard. It includes diagrams of the rear and front panel connectors, IR transmission pins, audio interfaces, SATA ports and power connections.
Key sections cover CPU socket information, supported memory modules, CMOS jumper functions, network Wake‑On‑LAN setup, and driver CD installation. The document also lists the integrated audio codec and provides guidance for BIOS power‑management options.
Foxconn 865G specifications
| Supported FSB speeds | 400 MHz, 533 MHz, 800 MHz |
|---|---|
| Northbridge chipset | Intel 8865GZGV/APE |
| Southbridge chipset | Intel ICH5 |
| Audio codec | ALC655 6‑channel |
| USB ports | Four USB 2.0 ports |
Source: Foxconn 865G/GV/PEAD Motherboard Installation Service Manual
All Foxconn 865G documents by type
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
Who is listed as the responsible party for this motherboard?
The responsible party is PCE Industry Inc.
From: Foxconn 865G/GV/PE7MC Motherboard Declaration of Conformity
