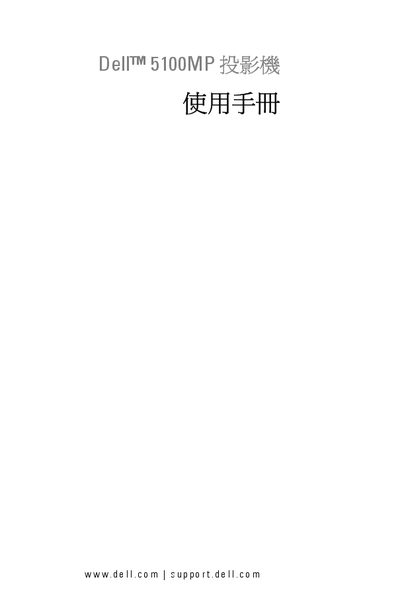

Dell 5100MP projector user manual, introduces how to connect the projector, use the projector, etc.
This manual covers safety precautions, product accessories, and detailed connection options for the Dell 5100MP projector, including HDMI, VGA, D‑sub, USB, RCA, S‑Video, BNC, and RS‑232 interfaces. It also explains how to install the projector, connect to power and external devices, and configure network and remote control settings.
The guide describes how to operate the projector, adjust image size, focus, height, and zoom, and navigate the on‑screen menus for image, audio, language, and network settings. Troubleshooting steps, self‑diagnostics, and an index are provided to help resolve common issues. This manual is written in Chinese.
| HDMI Port | HDMI connector |
|---|---|
| VGA Input | VGA input connector |
| VGA Output | VGA output connector |
| S‑Video Input | S‑Video connector |
| Audio Input | Audio input connector |
| Audio Output | Audio output connector |
The manual warns that improper use can cause personal injury, property damage, and data loss.
You can use M1 to HDMI, D‑sub/USB, YPbPr, RCA, S‑Video, composite, or BNC cables to connect a DVD player.
Use the image adjustment controls to change height, zoom, and focus as described in the Image Adjustment section.
The projector provides HDMI, VGA (input and output), RS‑232, S‑Video, BNC, RJ45 Ethernet, audio in/out, and infrared/RF remote receivers.
