Start here

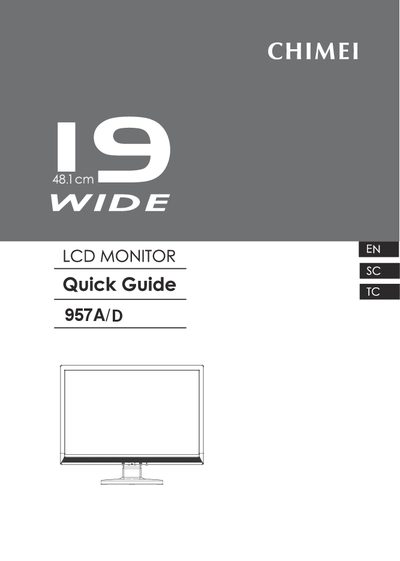

CHIMEI LCD MONITOR 19WIDE Manual
This guide lists the package contents—including the LCD monitor, stand, power cord, D‑Sub, audio and optional DVI cables, and a CD‑ROM with the full user manual—and gives safety precautions such as using only original accessories and keeping the unit out of children’s reach.
It then walks you through a quick installation: attach the monitor to the stand, connect the signal and audio cables, plug the power cord into an AC outlet, and power on the monitor and computer. The specification section details the 19‑inch (48.1 cm) screen, 1440 × 900 resolution, brightness, contrast, power consumption and environmental limits, while the service page provides regional support phone numbers. This manual is written in Chinese.
Chimei 957A specifications
| Screen Size | 19 inch (Diagonal 48.1 cm) |
|---|---|
| Resolution | 1440 × 900 (WXGA+) |
| Display Colors | 16.7 million |
| Brightness | 330 cd/m² |
| Dynamic Contrast Ratio | 10000:1 |
| Viewing Angle (Horizontal/Vertical) | 170° / 160° |
| Input Connectors | D‑Sub / D‑Sub + DVI |
| Power Consumption (Operating) | <40 W |
| Power Consumption (Standby) | <2 W |
| Dimensions (W×H×D) | 439.02 mm × 365.09 mm × 190 mm |
| Net Weight | 4.0 kg |
Source: CHIMEI LCD MONITOR 19WIDE Manual
All Chimei 957A documents by type
The shortest path to a working setup, usually only a few pages.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the power consumption of the monitor?
The monitor consumes less than 40 W during operation and less than 2 W in standby or suspend mode.
