Key facts
- Brand
- BenQ
- Model
- X720
- Category
- Digital cameras
- Industry
- Electronics
- Documents
- 3
- Languages
- ZH
- Last added
- 2012-03-15
Start here

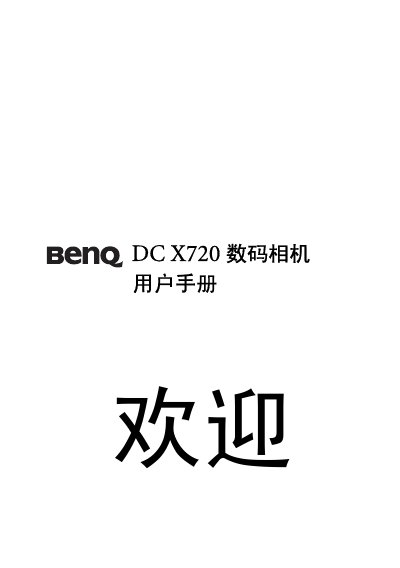

BenQ DC X720 Digital Camera User Manual
This manual provides step‑by‑step instructions for setting up and using the BenQ DC X720 digital camera. It covers battery installation and charging, SD‑card handling, shooting modes, video recording, and basic maintenance.
The document also includes a troubleshooting guide, technical specifications, and service contact information for users who need further assistance. This manual is written in Chinese.
BenQ X720 specifications
| Image sensor | 1/2.5 inch CCD |
|---|---|
| Effective pixels | 7.2 MP |
| LCD screen | 2.5‑inch 230K color LTPS |
| Lens focal length | 6.2‑18.6 mm (35 mm equivalent 37.5‑112.5 mm) |
| Maximum aperture | F2.7 / F4.3 |
| Shutter speed | 1/2000 s – 1 s (4 s in night mode) |
| ISO range | Auto, 80‑4000 |
| Video format | AVI (MPEG‑4) |
| Internal storage | 18 MB (expandable via SD card) |
| Dimensions (W×H×D) | 91 mm × 60 mm × 14.7 mm |
| Weight | ≈120 g (without battery/SD card) |
| Operating temperature | 0 °C – 40 °C |
All BenQ X720 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I charge the battery?
Use the supplied charger and AC adapter; connect the charger to the battery, then plug the adapter into a wall outlet. The charger LED turns red while charging and green when fully charged.
How do I format the SD card?
Insert the SD card, power on the camera, and use the menu to format the card before first use. Ensure the card is not write‑protected and that the camera is powered off when inserting or removing the card.
How do I charge the battery?
Connect the supplied charger and AC adapter to the battery; the charger LED glows red while charging and turns green when the battery is fully charged.
What is the operating temperature range?
The camera can be used in temperatures from 0 °C to 40 °C.
