Start here

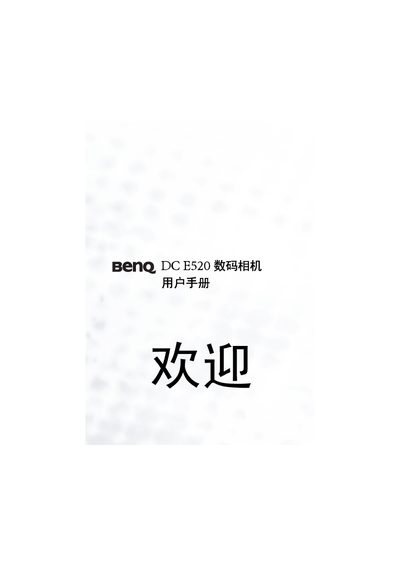

BenQ DC E520 Digital Camera User Manual
This manual introduces the BenQ DC E520 digital camera, covering safety handling, component overview, and preparation steps such as battery installation and SD‑card insertion. It also explains how to configure date/time, use various shooting modes, and connect the camera to a PC via USB or PictBridge.
Later sections provide troubleshooting tips, detailed technical specifications, and service information, including contact details for BenQ support. This manual is written in Chinese.
BenQ E520 specifications
| Image sensor | 1/2.5‑inch CCD, 4.92 MP |
|---|---|
| LCD display | 2.5‑inch color LTPS LCD (960 × 240 px) |
| Lens focal length | 5.8‑17.4 mm (35‑105 mm equiv.) |
| Maximum aperture | F2.6 / F4.8 |
| Shutter speed | up to 1/2000 s |
| ISO sensitivity | Auto / 100 / 200 / 400 |
| Video format | AVI (MPEG‑4), 640 × 480 px @ 30 fps |
| Internal storage | 32 MB, expandable with SD card |
| Power source | 1230 mAh Li‑ion battery, 5 V DC adapter |
| Dimensions | 88 × 58 × 23.7 mm |
| Weight | ≈133 g (without battery/SD card) |
All BenQ E520 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I install the battery?
Open the battery/SD‑card compartment, insert the battery in the correct orientation, lock the battery latch, and close the cover.
How do I format the internal memory?
With the camera powered on, select the format option in the menu; note that formatting erases all data and cannot be undone.
What should I do if the camera will not turn on?
Make sure a battery is correctly installed and charged; if the battery is low, charge it before trying again.
What does a flashing orange LED on the camera indicate?
A flashing orange LED means there is an error or warning condition.
