Start here

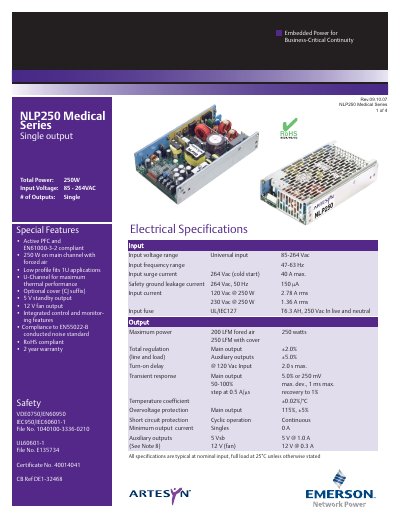

Artesyn NLP250 Medical Series Single Output Datasheet
The NLP250 Medical Series is a low‑profile 1U power module designed for business‑critical continuity in medical applications. It provides a single 250 W main output with optional forced‑air cover, active PFC, and standby and fan auxiliary outputs (5 V sb and 12 V). The unit complies with EN55022‑B, EN61000‑3‑2, EN61000‑4‑2, EN61000‑4‑3, EN61000‑4‑4, EN61000‑4‑5, EN61000‑4‑6, VDE0750, IEC60601‑1 and RoHS standards, and carries a two‑year warranty.
Key specifications include a universal input range of 85‑264 VAC, efficiency of up to 86 % at 230 VAC, and extensive safety approvals (UL/cUL, UL60601‑1, VDE EN60601‑1, CAN/CSA22.2). The datasheet also provides mechanical drawings, pin‑out diagrams, and derating curves for various ambient conditions.
Artesyn NLP250 specifications
| Maximum Output Power | 250 W |
|---|---|
| Input Voltage Range | 85‑264 VAC |
| Efficiency (230 VAC) | 86 % typ. |
| Standby Output | 5 V sb @ 1 A |
| Fan Output | 12 V @ 0.3 A |
| Weight | 650 g (22 oz) |
| Safety Approvals | UL/cUL, UL60601‑1, VDE EN60601‑1, CAN/CSA22.2 No. 601‑1 |
Source: Artesyn NLP250 Medical Series Single Output Datasheet
All Artesyn NLP250 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the standby voltage provided by the NLP250?
The module provides a 5 V standby output capable of delivering 1 A.
Which safety and regulatory standards does the NLP250 meet?
It complies with UL/cUL, UL60601‑1, VDE EN60601‑1, CAN/CSA22.2 No. 601‑1, EN55022‑B, EN61000‑3‑2, EN61000‑4‑2, EN61000‑4‑3, EN61000‑4‑4, EN61000‑4‑5, EN61000‑4‑6, and RoHS.
