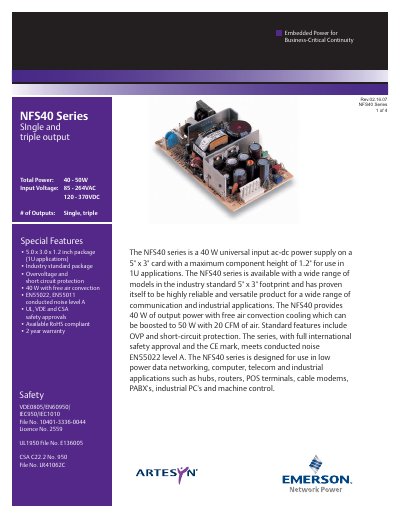

Artesyn NFS40 Series 40W Universal Input AC-DC Power Supply Datasheet
The NFS40 series provides 40 W of output power with natural convection cooling and can be boosted to 50 W using 20 CFM forced air. It is available in single‑output and triple‑output configurations and meets EN55022 Level A conducted noise requirements. Standard features include over‑voltage protection, short‑circuit protection, and full international safety approvals (UL, VDE, CSA, CE).
Designed for low‑power data networking, telecom, POS terminals, and industrial PC applications, the module operates from a universal input range of 85‑264 Vac (120‑370 Vdc). It supports operation from –40 °C to +85 °C (non‑operating) and includes mechanical mounting options with non‑metallic stand‑offs and optional cover kits.
Artesyn NFS40 specifications
| Output Power | 40‑50 W |
|---|---|
| Input Voltage Range | 85‑264 Vac (120‑370 Vdc) |
| Efficiency | 70 % typical |
| Package Dimensions | 5.0 × 3.0 × 1.2 in |
| Over‑voltage Protection | +5 V output 125 % ±15 % |
| Weight | 280 g (9.88 oz) |
Source: Artesyn NFS40 Series 40W Universal Input AC-DC Power Supply Datasheet
All Artesyn NFS40 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the recommended minimum load for the +5 V output?
A minimum load of 0.5 A is required on the +5 V output to obtain full current from the negative output.
From: Artesyn NFS40 Series 40W Universal Input AC-DC Power Supply Datasheet
What is the operating temperature range?
The module operates from 0 °C to +70 °C.
From: Artesyn NFS40 Series 40W Universal Input AC-DC Power Supply Datasheet
What input voltage ranges are supported?
The supply accepts 85‑264 VAC or 120‑370 VDC input.
What is the typical efficiency of the NFS40 series?
Typical efficiency is about 70 % at nominal input.
What is the efficiency of the NFS40/NFN40 power modules?
The modules achieve a typical efficiency of 70 %.
What temperature range can the modules operate in?
They operate from 0 °C to +70 °C and can be stored from –40 °C to +85 °C.
