Key facts
- Brand
- ALPS
- Model
- EC11B15244
- Industry
- Industrial
- Documents
- 2
- Languages
- JA · EN
- Last added
- 2012-05-08
Start here

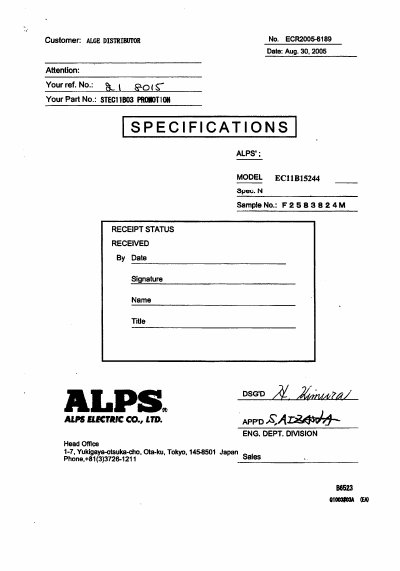

ALPS EC11B15244 Rotary Encoder Datasheet
Datasheet 6 pages · 377 KB · JA
The ALPS EC11B15244 is an incremental rotary encoder designed for applications that require high safety and reliability. This datasheet provides detailed specifications, recommended usage, and mounting information.
Key sections cover electrical characteristics such as supply voltage and contact resistance, mechanical dimensions, and mounting details. The document also includes safety notes and recommended protective circuit designs for high‑reliability equipment. This manual is written in Japanese.
ALPS EC11B15244 specifications
| Resolution | 360 pulses per revolution |
|---|---|
| Supply Voltage | 5 V DC |
| Contact Resistance | ≤ 30 mΩ |
| Shaft Material | Aluminum |
| Mounting Hole Diameter | 6 mm |
All ALPS EC11B15244 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the resolution of the EC11B15244 encoder?
The encoder provides 360 pulses per revolution.
What supply voltage does the EC11B15244 require?
It operates from a 5 V DC supply.
What is the model number of the component?
The model number is EC11B15244.
What is the sample identification number?
The sample number is F2583824M.
