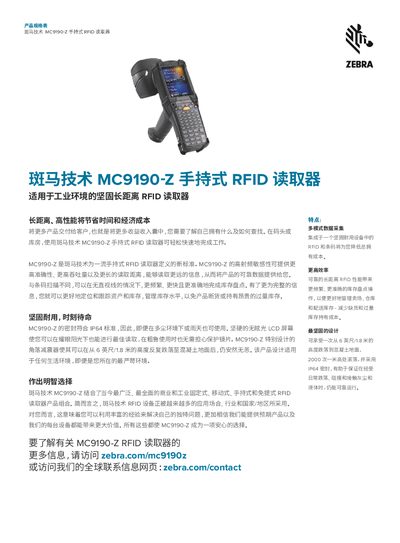

This document provides product specifications and features for the Zebra MC9190-Z handheld RFID reader, designed for industrial inventory management.
The Zebra MC9190-Z is a rugged handheld RFID reader designed for industrial environments, combining long-range RFID performance with barcode scanning capabilities. It features a durable design capable of withstanding drops from 6 feet (1.8 meters) and rolling from 1 meter 2,000 times, with an IP64 seal for dust and water resistance. The device supports multi-mode data collection, including 1D laser, extended range 1D, and 2D imaging scanning engines. This manual is written in Chinese.
| Dimensions (L x W x H) | 10.75 in x 4.7 in x 7.7 in (27.3 cm x 11.9 cm x 19.5 cm) |
|---|---|
| Weight (with battery) | 34.35 oz / 2.147 lb (973.8 g) |
| Operating Temperature | -20° C to 50° C |
| Battery | 7.2 V 2200 mAh Li-ion |
| CPU | Marvell PXA320, 806 MHz |
| OS | Microsoft Windows Mobile 6.5 |
| Memory (RAM/ROM) | 256 MB/1 GB |
| Max SD/MMC Card | 32 GB |
| RFID Read Range | Up to 30 ft / 9.14 m |
| WLAN Data Rate (802.11a) | Up to 54 Mbps |
| Drop Resistance | 6 ft / 1.8 m onto concrete |
| Sealing | IP64 |
The device can withstand multiple drops from 6 feet (1.8 meters) onto concrete.
The operating temperature range is -20° C to 50° C.
The rated read range is up to 30 feet (9.14 meters).
The MC9190-Z RFID reader has a 12-month warranty for defects in workmanship and materials.
