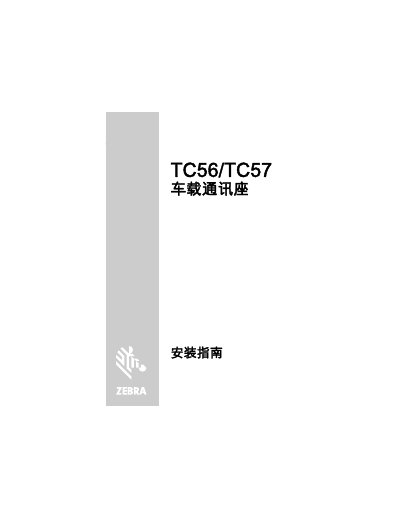

This guide explains how to install and use the Zebra CRD‑TC56‑CVCD2‑02 vehicle communication dock with TC56/TC57 terminals, covering mounting, power…
The Zebra CRD‑TC56‑CVCD2‑02 vehicle communication dock provides a secure mounting solution for TC56/TC57 touch data terminals and supplies power and data connectivity via USB. It draws vehicle power (12‑24 V) and outputs regulated 5 V to the terminal and connected devices.
The guide details step‑by‑step installation on a RAM suction‑cup mount, windshield, or dashboard, includes safety warnings (e.g., do not operate while driving), and describes how to connect the USB charging cable (CBL‑TC5X‑USBC2A‑01) and power source. Compliance and RoHS information are also provided. This manual is written in Chinese.
| Input voltage range | 12 V – 24 V (3.5 A) |
|---|---|
| Output voltage | 5 V ±5 % (2.5 A) |
It is powered from the vehicle’s 12 V‑24 V electrical system, providing a regulated 5 V output for the terminal.
Use the USB Type‑C charging cable part number CBL‑TC5X‑USBC2A‑01.
Yes, the dock can be mounted on the windshield using the RAM suction‑cup, ensuring a vertical position and a clean glass surface.
