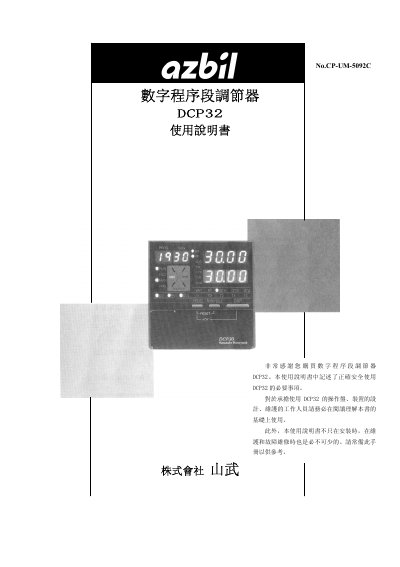

This manual provides installation, wiring, operation, parameter setting, and maintenance instructions for the Yamatake DCP32 digital program segment regulator.
The Yamatake DCP32 is a digital program segment regulator designed for general equipment applications. This user manual covers essential safety precautions, system configuration, and operational procedures required for safe and effective use of the device.
The document details installation methods, wiring connections for input/output terminals, and parameter settings via the front panel or programming software. It also includes instructions for running programs, performing maintenance tasks such as cleaning and battery replacement, and troubleshooting common faults. This manual is written in Chinese.
| Supply Voltage | 100～240VAC |
|---|---|
| Operating Power Supply Voltage | 90～264VAC |
| Power Frequency | 50/60Hz |
| Consumption Power | 30VA or less |
| Operating Temperature Range | 0～50℃ |
| Operating Humidity Range | 10～90%RH |
It takes up to 15 seconds for the product to stabilize after being powered on.
No, using unused terminals as relay terminals poses risks of electric shock and fire.
