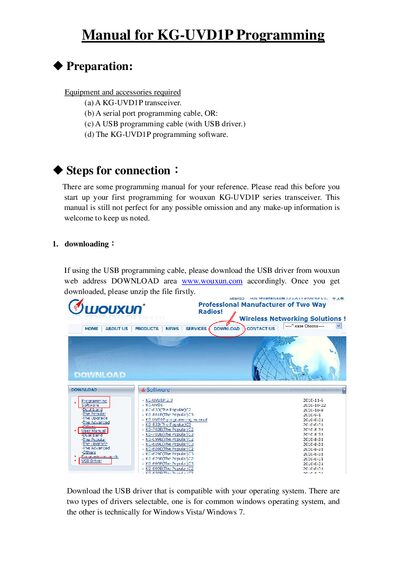

Wouxun KG-UVD1P Programming Manual

Step‑by‑step guide for programming the Wouxun KG‑UVD1P handheld transceiver using USB or serial cable.

Brand: Wouxun
Category: Other Electronics
Document type: Programming Manual
Language: English
Pages: 21
File format: PDF
File size: 2.1 MB
Published: 28 September, 2026
Updated: 28 September, 2026
Model: KG-UVD1P
MD5 checksum: 1A1988D32F6C6A8718D334F554D997CF
PDF: Wouxun KG-UVD1P Programming Manual PDF

About this manual

The manual explains the required equipment, driver installation, and software setup needed to program the KG‑UVD1P transceiver. It covers connection procedures, troubleshooting tips, and detailed instructions for configuring channels, CTCSS/DCS, power levels, and optional functions.

Each section walks the user through the programming software interface, showing how to read from or write to the radio, adjust frequency settings, and customize key functions. The document also includes notes on COM‑port selection and default option values.

What's inside

Preparation
USB driver installation
Cable ready
Software ready
Connection
Failed connection troubleshooting
Programming the transceiver on PC
Channel Information
Optional Function
Key Set

Specifications

Memory channels	128
CTCSS groups	50
DCS groups	105
Bandwidth options	NARROW (12.5 kHz) / WIDE (25 kHz)
Busy Lockout default	NO
Scan Add default	YES

Frequently asked questions

How many memory channels can be programmed?

The KG‑UVD1P provides 128 selectable memory channels.

What are the default bandwidth options?

The default bandwidth is WIDE (25 kHz); you can switch to NARROW (12.5 kHz) if needed.
