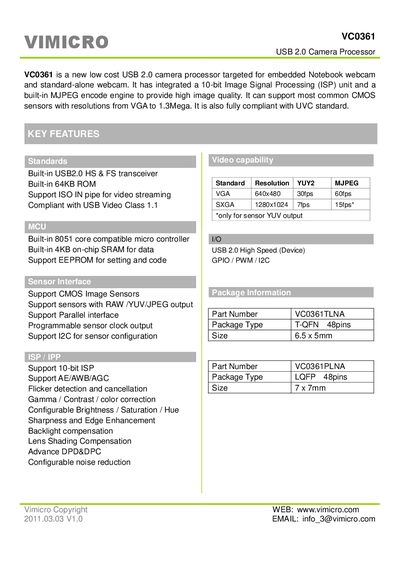

The Vimicro VC0361 is a low‑cost USB 2.0 camera processor with an integrated 10‑bit ISP and MJPEG encoder for notebook and standalone webcams.
The VC0361 is a USB 2.0 camera processor targeting embedded notebook webcams and standard standalone webcams. It integrates a 10‑bit Image Signal Processing unit and a built‑in MJPEG encoder to deliver high image quality while supporting common CMOS sensors from VGA up to 1.3 Mega resolution.\n\nKey features include a built‑in USB 2.0 HS/FS transceiver, 64 KB ROM, 4 KB on‑chip SRAM, an 80‑core compatible micro‑controller, and extensive sensor interface options such as parallel, I2C, and programmable clock output. The device complies with the USB Video Class 1.1 standard and offers video output in YUY2 and MJPEG formats at VGA and SXGA resolutions.
| USB Standard | USB 2.0 HS & FS transceiver |
|---|---|
| ROM Size | 64 KB |
| SRAM Size | 4 KB on‑chip |
| Microcontroller Core | 80‑core compatible 8051 |
| ISP Bit Depth | 10‑bit |
| Supported Sensor Resolutions | VGA to 1.3 Mega |
| Video Output Formats | YUY2 and MJPEG at VGA 640×480 30/60 fps, SXGA 1280×1024 7/15 fps |
| Package Types | T‑QFN 48‑pin (6.5 × 5 mm) and LQFP 48‑pin (7 × 7 mm) |
It includes a built‑in USB 2.0 high‑speed and full‑speed transceiver.
It supports common CMOS sensors ranging from VGA up to 1.3 Mega resolution.
The processor outputs YUY2 and MJPEG at VGA 640×480 (30 fps or 60 fps) and SXGA 1280×1024 (7 fps or 15 fps).
It is available in a T‑QFN 48‑pin package (6.5 × 5 mm) and an LQFP 48‑pin package (7 × 7 mm).
