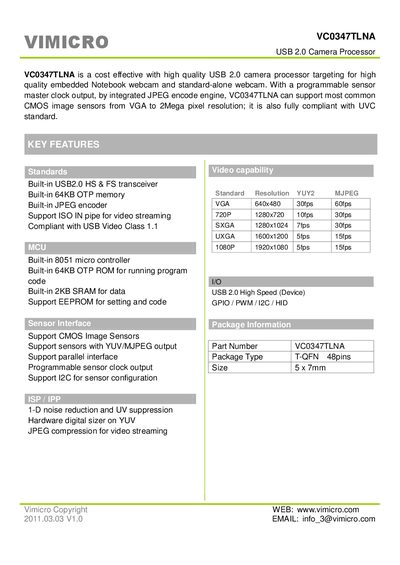

The Vimicro VC0347TLNA is a USB 2.0 camera processor supporting VGA to 2 MP sensors, with built‑in JPEG encoder and UVC compliance.
The VC0347TLNA is a cost‑effective USB 2.0 camera processor aimed at high‑quality embedded notebook webcams and standalone webcams. It works with most common CMOS image sensors ranging from VGA up to 2 MP resolution and complies fully with the USB Video Class 1.1 standard.
Key features include a built‑in USB 2.0 HS/FS transceiver, 64 KB OTP memory, JPEG encoder, 80/51 micro‑controller, 2 KB SRAM, and support for I²C sensor configuration. The device offers programmable sensor clock output, parallel sensor interface, and video capabilities such as YUY2 and MJPEG at resolutions up to 1080P.
| USB Interface | Built‑in USB 2.0 HS & FS transceiver |
|---|---|
| OTP Memory | 64 KB |
| JPEG Encoder | Integrated |
| Package | T‑QFN 48 pins, 5 × 7 mm |
| Supported Resolution (VGA) | 640 × 480 @ 30/60 fps (YUY2, MJPEG) |
Yes, the processor has a built‑in JPEG encoder.
A built‑in USB 2.0 high‑speed and full‑speed transceiver is integrated.
