The Vimicro VC0338 USB 2.0 camera processor provides ISP, MJPEG compression, UVC/UAC compliance and flexible sensor interfaces.

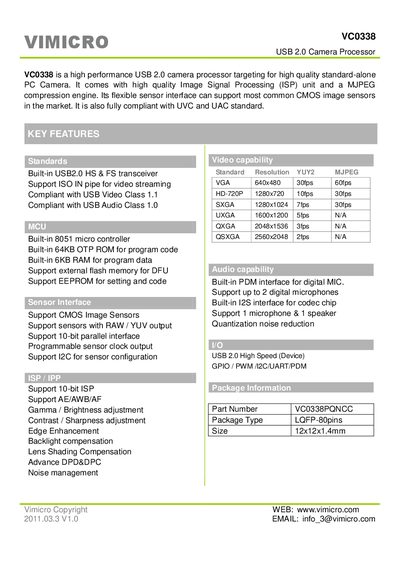

The VC0338 is a high‑performance USB 2.0 camera processor designed for standalone PC cameras. It integrates a 10‑bit ISP, AE/AWB/AF functions, and a MJPEG compression engine, while remaining fully compliant with USB Video Class 1.1 and USB Audio Class 1.0 standards.
The device includes an 80‑51 microcontroller, 64 KB OTP ROM, 6 KB RAM, and supports external flash for DFU as well as EEPROM for settings. Its sensor interface accommodates most CMOS image sensors with RAW/YUV output, a 10‑bit parallel bus, programmable clock, and I²C configuration. Video output ranges from VGA to QSXGA, and audio input is provided via built‑in PDM and I²S interfaces.
| Microcontroller | 80 51 |
|---|---|
| OTP ROM | 64 KB |
| RAM | 6 KB |
| External flash support | DFU |
| EEPROM support | settings and code |
| Sensor output formats | RAW, YUV |
| Parallel interface width | 10‑bit |
| Video resolution (VGA) | 640×480 30 fps / 60 fps |
| Audio interface | PDM for digital mic |
Yes, it is compliant with USB Video Class 1.1 and USB Audio Class 1.0.
The chip includes 64 KB of OTP ROM for program code and 6 KB of RAM for program data.
