Vector VC Series Servo Drive User Manual

User manual for the Vector VC series servo drive covering installation, wiring, operation modes and software.

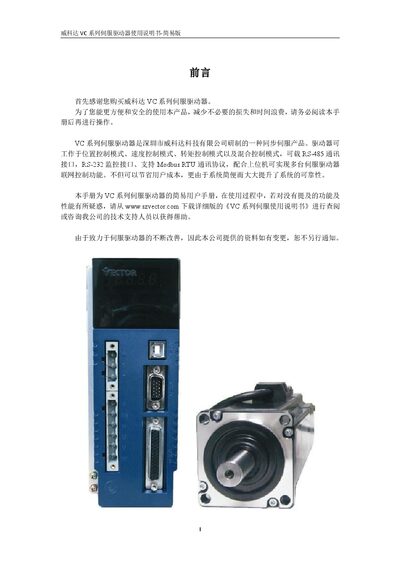

Vector VC Series Servo Drive User Manual - cover page
Brand
Vector
Category
Industrial Robot
Document type
User Manual
Language
Chinese
Pages
40
File format
PDF
File size
2.9 MB
Published
29 September, 2026
Updated
29 September, 2026
MD5 checksum
27A1D21016375AEB4900F22E2144FC20
PDF
Vector VC Series Servo Drive User Manual PDF

About this manual

The Vector VC series servo drive is a synchronous servo product developed by Shenzhen Vector Technology Co., Ltd. It supports position, speed, torque and hybrid control modes and offers RS‑485, RS‑232 and Modbus‑RTU communication interfaces.

This simplified user manual provides guidance on product selection, unpacking inspection, installation, wiring, panel operation, functional keys, operating modes, and the accompanying VECObserve software for parameter management and diagnostics. This manual is written in Chinese.

What's inside

  • Foreword
  • Unpacking Inspection
  • Servo System Selection
  • Drive Installation and Dimensions
  • Wiring
  • Panel Display and Keyboard Operation
  • Functions
  • Operating Modes
  • Backend Software

Specifications

Power rating (220 V three‑phase)0.4 kW
Operating temperature range-10 °C to 40 °C
Relative humidity range0 % to 95 %
Communication interfacesRS‑485, RS‑232, Modbus‑RTU

Frequently asked questions

What communication interfaces does the VC series servo drive support?

It supports RS‑485 communication, RS‑232 monitoring, and the Modbus‑RTU protocol.

How should the grounding terminal be connected?

The grounding terminal must be connected to ground to avoid electric shock or interference.
