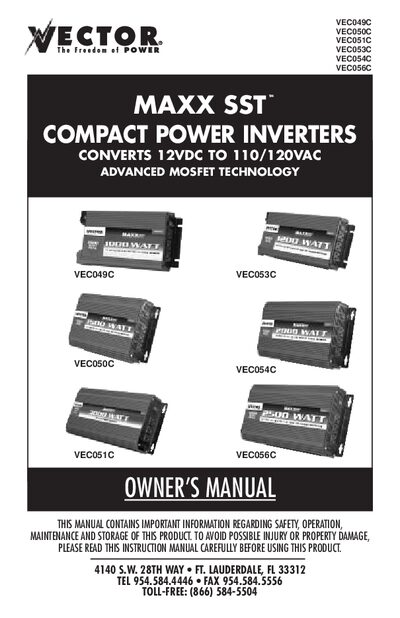

MAXX SST 12VDC to 110/120VAC Compact Power Inverter Owner's Manual

This document is the user manual for MAXX SST compact power inverter.

Brand: Vector
Document type: User Manual
Language: English
Pages: 21
File format: PDF
File size: 277 KB
Published: 16 October, 2023
Updated: 16 October, 2023
MD5 checksum: 2861BC5065BF76E6DE364459E16A85D3
PDF: MAXX SST 12VDC to 110/120VAC Compact Power Inverter Owner's Manual PDF

About this manual

This manual explains how to safely install, operate, and maintain the Vector MAXX SST compact power inverter, which converts 12 VDC to 110/120 VAC using advanced MOSFET technology. It includes safety warnings, wiring guidelines, and troubleshooting tips.

The document also details the inverter’s specifications, such as its three AC outlets, modified‑sine‑wave output, and maximum input current, as well as warranty information and service contacts.

What's inside

Introduction
Safety Features
Inverter Applications
Theory of Operation
Specifications
Installation
Maintenance
Troubleshooting
Warranty

Specifications

Input current (max)	15 A at 12 VDC
Output voltage	110/120 VAC RMS
Number of AC outlets	3 standard North American grounded receptacles

Frequently asked questions

What is the maximum DC input current for the MAXX SST inverter?

The inverter can draw up to 15 amps at 12 VDC when operating at full load.

How many AC outlets does the MAXX SST inverter provide?

It provides three standard North American grounded plug‑in receptacles.
