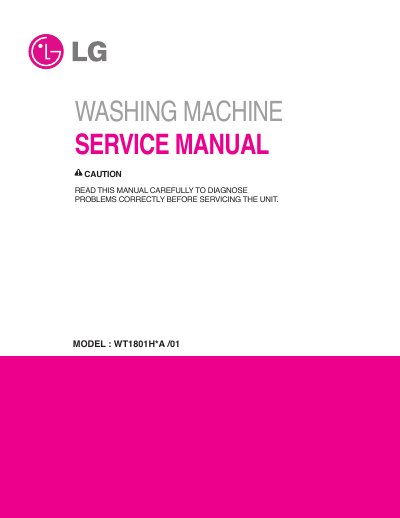

Service manual for WT1801H*A /01 washing machine covering installation, operation, troubleshooting, and component testing.
This service manual provides detailed instructions for installing, operating, and servicing the WT1801H*A /01 washing machine. It includes safety precautions, leveling instructions, water and drain hose connections, operating functions, and troubleshooting guides with error codes. The manual also covers component testing and exploded views for maintenance and repair.
Technical specifications are provided, including electrical ratings, spin speed, weight, and wash cycles. Safety warnings emphasize disconnecting power, using gloves, and avoiding installation on sloped or freezing surfaces. Installation guidelines cover leveling, water pressure, and proper hose connections to prevent leaks or damage.
| Electrical | 120 VAC@60 Hz |
|---|---|
| Inner Tub | Stainless |
| Inlet Water Pressure | 20 ~ 120 psi(138 ~ 827 kPa) |
| Rating of Fuse | 120V/60Hz |
| Spin Speed | 1100±50 rpm |
| Weight | 137.3 lbs. (62.3 kg) |
| Wash Cycles | Normal, Heavy Duty, Bulky, Bright Whites™, Sanitary, Allergiene™ , Perm.Press, Towels, Wool, Delicates, Speed Wash, Tub Clean |
| Time Delay | 1 – 19 Hr |
| Lid Interlock Switch | Magnet Sensor |
| Control Lock | Yes |
| Softener Dispenser | Yes |
| Detergent Dispenser | Yes |
| Bleach Inlet | Yes |
| Auto Power Off | Yes |
| Smart Rinse™ with Jet Spray | Yes |
| Heater | Yes |
Available cycles include Normal, Heavy Duty, Bulky, Bright Whites™, Sanitary, Allergiene™, Perm.Press, Towels, Wool, Delicates, Speed Wash, and Tub Clean.
The water supply pressure must be between 20 and 120 psi.
Two or more people are required when moving the appliance.
The spin speed rating is 1100±50 rpm.
