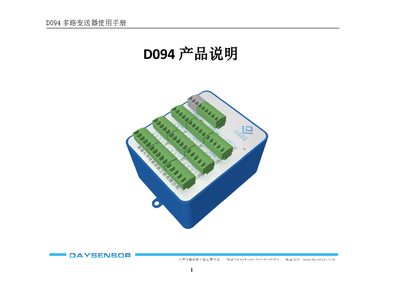

This manual provides operating instructions, installation guidelines, and communication protocols for the D094 multi-channel transmitter.
The D094 Multi-Channel Transmitter is a device featuring a card-based data acquisition module with a main board and 1-3 acquisition modules, each containing 3 input channels. It supports analog input signals with built-in hardware and software filtering and offers adjustable acquisition speeds ranging from 10 to 320 times per second. The device can simultaneously collect data from nine channels and supports sensor power supply at 5V with a signal input range of +/-30mV. This manual is written in Chinese.
| Power Supply | DC 24V +/-10% |
|---|---|
| Power Consumption | Less than 5W |
| Channels | Up to 9 channels |
| Acquisition Speed | 10, 20, 80, 320 times/s |
| Resolution | 20 bits |
| Sensor Power Supply | 5V |
| Signal Input Range | +/-30mV |
| Communication Interfaces | RS485 and RS232 |
The device supports acquisition speeds of 10, 20, 80, and 320 times per second.
The transmitter can simultaneously collect data from up to nine channels.
It executes the Modbus-RTU protocol and a custom active sending protocol via RS485 and RS232.
