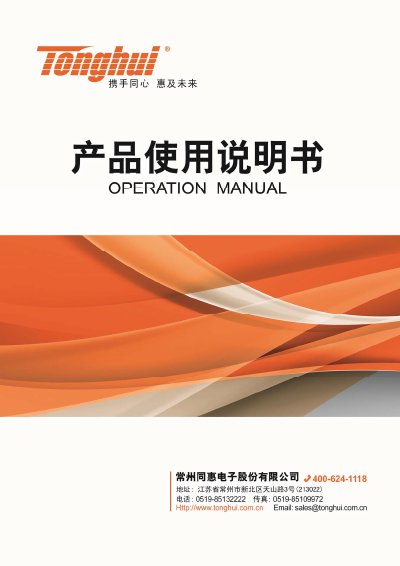

User manual for the Tonghui TH9310/20 series instrument covering installation, operation, safety, and specifications.
This manual provides detailed instructions for installing, using, and maintaining the TH9310/20 series instrument. It includes safety warnings, panel descriptions, basic operation steps, and a full SCPI command reference.
The document also lists technical specifications, upgrade procedures, and version history, helping users configure the instrument for high‑voltage testing, insulation resistance, and other measurement functions. This manual is written in Chinese.
| AC Output Voltage Range | 0.050 kV – 5.000 kV |
|---|---|
| AC Output Power (5 kV, 20 mA) | 100 VA |
| Power Consumption | <400 VA (TH9310/A/B) |
| Dimensions (W × H × D) | 280 mm × 88 mm × 420 mm |
The instrument can store up to 20 test files, each containing up to 20 test steps.
The instrument can generate up to 5 kV high voltage that may cause injury or death, so all safety precautions must be followed.
