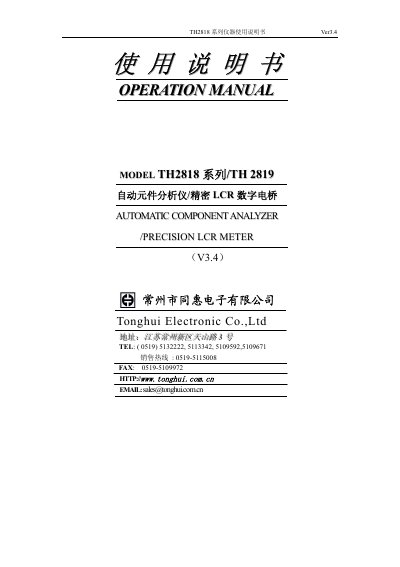

The Tonghui TH2818 Series manual provides installation, operation, menu functions, and system settings for the automatic component analyzer and precision…
This manual covers the complete setup and use of the TH2818 series instruments, including the TH2818 and TH2819 models. It details installation steps, panel description, menu navigation for LCR, transformer, and system functions, as well as file management and measurement procedures.
Additional sections explain the optional HANDLER and IEEE‑488 interfaces, calibration procedures, performance testing, and warranty information, helping users achieve accurate component analysis and LCR measurements. This manual is written in Chinese.
| Operating temperature | 5 °C ~ 40 °C |
|---|---|
| Maximum relative humidity | ≤ 85 % |
| Optional interfaces | IEEE‑488 and HANDLER (must be purchased separately) |
Press the soft‑key for load calibration, then follow the on‑screen steps to complete the calibration.
The TH2818 series can be equipped with an IEEE‑488 interface and a HANDLER interface, both of which must be purchased separately.
