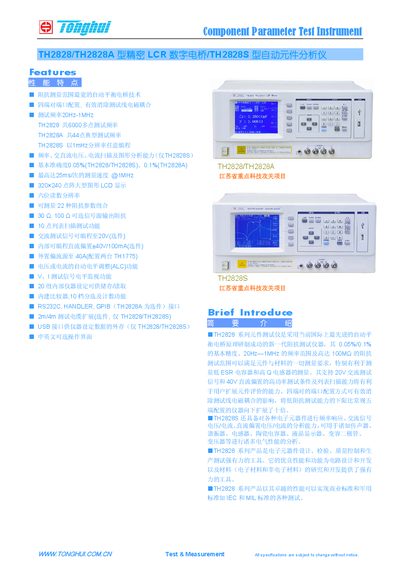

TH2828/TH2828A/TH2828S is a high-precision, high-performance, wide-range, multi-function component test instrument, which adopts the most advanced automatic balancing bridge principle in the world. It has the widest impedance measurement range, the highest basic accuracy, the fastest measurement speed, and the most powerful functions. It is mainly used in electronic component design, inspection, quality control and production testing, as well as circuit design and development and material (electronic materials and non-electronic materials) research and development.
The TH2828 series is a precision LCR digital bridge and automatic component analyzer offering a 20 Hz‑1 MHz frequency range, up to 6 000 test points, and 0.05 % basic accuracy for the TH2828/TH2828S models. It supports four‑terminal pair connections, programmable AC/DC voltage and current, and high‑speed measurements (as fast as 25 ms per reading at 1 MHz).
The instrument includes a 320×240 pixel LCD, internal non‑volatile memory for 20 preset configurations, USB storage, and communication options such as RS‑232C, GPIB and optional Handler interface. Optional accessories provide extended test cables, high‑current bias sources, and various test fixtures for components, PCBs and materials. This manual is written in Chinese.
| Frequency range | 20 Hz‑1 MHz |
|---|---|
| Number of test points (TH2828) | over 6 000 |
| Basic accuracy (TH2828/TH2828S) | 0.05 % |
| Measurement speed (fast mode) | 25 ms per measurement at 1 MHz |
| Display | 320×240 pixel LCD |
| Communication interfaces | RS232C, GPIB, USB (optional) |
| Power consumption | ≤ 100 VA |
| Operating temperature | 0 °C – 40 °C |
| Dimensions (W×H×D) | 430 mm × 185 mm × 473 mm |
| Weight | ≈ 15 kg |
The instrument covers a frequency range from 20 Hz to 1 MHz.
The TH2828 can select over 6 000 test points.
The TH2828S provides a basic accuracy of 0.05 %.
The instrument supports RS‑232C, GPIB, and an optional USB interface.
