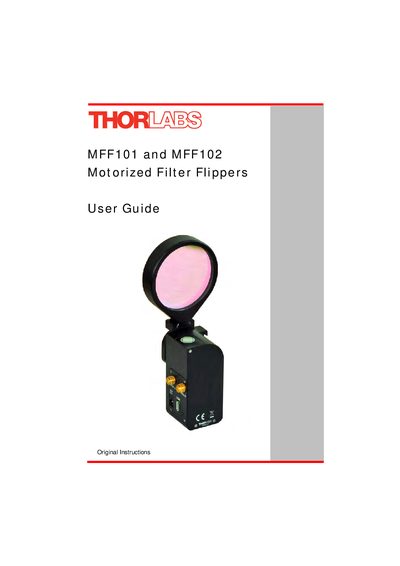

Thorlabs MFF101 and MFF102 Motorized Filter Flippers User Guide

This user guide provides safety information, installation instructions for the mechanical and software components, operation procedures, and a software…

Brand: THORLABS
Document type: User Manual
Language: English
Pages: 38
File format: PDF
File size: 857 KB
Published: 16 October, 2026
Updated: 16 October, 2026
MD5 checksum: BE9AC336D3F6D97A51125448A1458078
PDF: Thorlabs MFF101 and MFF102 Motorized Filter Flippers User Guide PDF

About this manual

The document serves as the official instruction manual for the Thorlabs MFF101 and MFF102 Motorized Filter Flippers. It covers essential safety warnings, an overview of the hardware capabilities including USB connectivity and TTL triggering, and detailed installation procedures for both mechanical mounting and software setup.

What's inside

Safety Information
Overview
APT Software Overview
Mechanical Installation
Software & Electrical Installation
Operation
Software Reference

Frequently asked questions

What are the physical dimensions of the MFF101 and MFF102 units?

The unit measures 70 mm x 30 mm x 30 mm.

What is the operating temperature range for these flippers?

The unit operates in a temperature range of 5°C to 40°C.

What is the maximum altitude at which these units can be used?

The maximum allowable altitude for operation is 2000 m.
