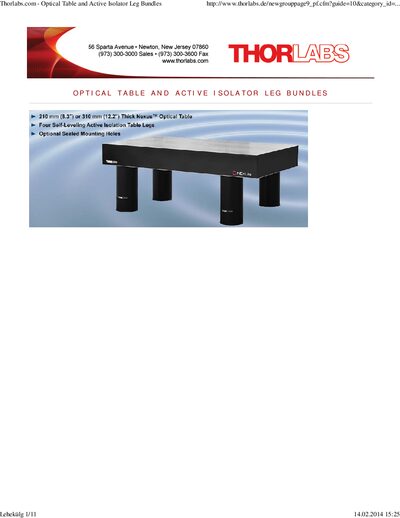

This Thorlabs product leaflet provides specifications, dimensions, performance data, and construction details for Nexus optical tables and active isolator…
The Nexus series offers optical tables and breadboards in sizes from 4' × 6' to 4.8' × 10' with 210 mm or 310 mm thicknesses. All‑steel construction, a precision‑machined matte finish, and a honeycomb core give excellent thermal stability and flatness. Each table ships with active pneumatic isolator legs (600 mm or 700 mm tall) that isolate vibrations from 3 Hz to 50 Hz.
Technical data include table thickness, flatness, mounting‑hole pattern, dynamic deflection coefficients, resonant frequencies, load capacity, and height‑adjustment range. Optional sealed mounting holes and anti‑static packaging are available. Every unit is tested and supplied with a unique test‑data certificate and compliance curve.
| Table Thickness | 210 mm (8.3") or 310 mm (12.2") |
|---|---|
| Flatness | ±0.1 mm over any 1 m² area |
| Mounting Hole Pattern | 1/4"‑20 tapped holes on 1" centers with 0.5" border |
| Deflection Under Load (210 mm) | < 1.7 µm for a 150 kg load |
| Deflection Under Load (310 mm) | < 1.2 µm for a 150 kg load |
| Vertical Resonant Frequency | 1.25 Hz |
| Horizontal Resonant Frequency | 1.0 Hz |
| Maximum Load Capacity (set of four legs) | 5500 lb (2500 kg) |
| Height Adjustment Range | -0.51" to +0.20" (-13 mm to +5 mm) |
| Self‑Leveling Repeatability | ±0.02" (0.5 mm) |
| Maximum Air Pressure | 80 psi (551 kPa) |
The vertical resonant frequency is 1.25 Hz.
A set of four legs can support up to 5500 lb (2500 kg).
The tabletop flatness is ±0.1 mm over any 1 m² area.
They are 1/4"‑20 tapped holes on 1" centers with a 0.5" border around the edge.
