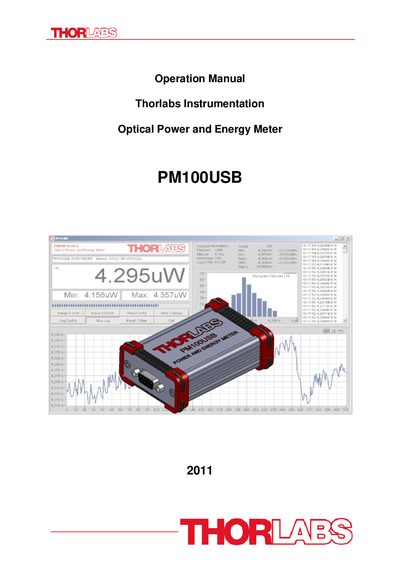

Operation manual for the Thorlabs PM100USB handheld optical power and energy meter, covering setup, sensor compatibility, measurement configurations, and…
The Thorlabs PM100USB is a compact USB-controlled optical power and energy meter designed to measure laser light or other monochromatic sources. It serves as an ideal choice for automated setups in manufacturing, quality control, and R&D applications due to its compatibility with various C-Type sensors.
| Display Update Rate (max) | Up to 500 Hz depending on PC and settings |
|---|---|
| Operating Temperature | 0°C - +40°C |
| Storage Temperature | -40°C - +70°C |
| Interface Type | USB2.0 |
| Accuracy (Photodiode Sensors) | +/- 0.2% f.s. (5 µA – 5 mA) |
| Bandwidth (analog) | DC – 100 kHz, depending on sensor and settings |
The meter is compatible with all Thorlabs "C-Type" Photodiode, Thermal, Pyroelectric sensors, and custom detectors.
No, the unit must not be operated in explosion-endangered environments.
The instrument can operate at altitudes below 3000 meters.
