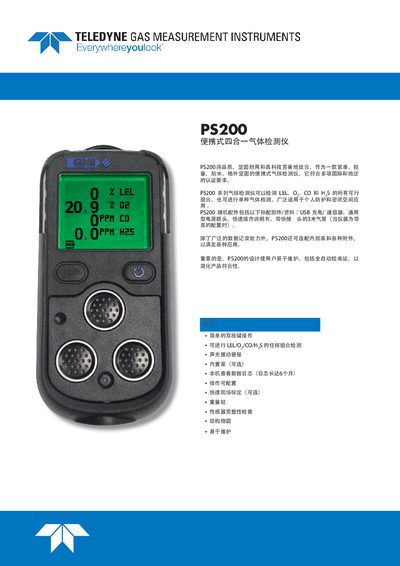

This leaflet introduces the Teledyne PS200 portable four-in-one gas detector, detailing its features, technical specifications, and available accessories.
The Teledyne PS200 is a compact, lightweight, waterproof, and rugged portable gas detector designed for personal protection and confined space applications. It can detect any combination of LEL, O2, CO, and H2S gases or measure them individually. The device features simple dual-button operation, audible/visual/vibration alarms, optional internal pump, data logging capabilities up to 6 months, and easy maintenance with an automatic calibration station. This manual is written in Chinese.
| Dimensions (with pump) | 121 × 59 × 32mm |
|---|---|
| Operating Temperature | -20°C to +50°C |
| Humidity Range | 0 to 95% R.H (no condensation) |
| IP Rating | IP67 |
| Battery Runtime (Diffusion) | Up to 14 hours |
| Data Logging Duration | At least 6 months |
The PS200 can detect LEL, O2, CO, and H2S in any combination or individually.
The standard warranty covers the detector, power supply, and sensors for 2 years from the factory date.
