This document provides information about the SC60-10 supplier. The product has certain features and characteristics.

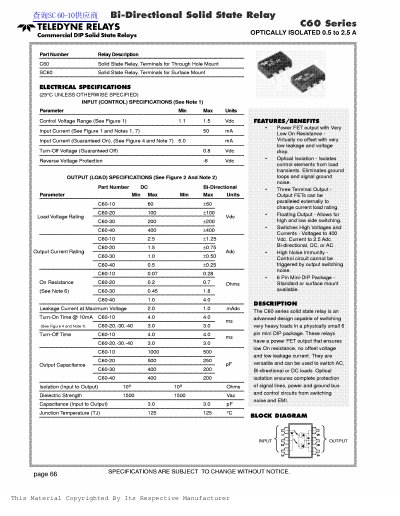

This document provides technical data for the Teledyne Relays C60 Series of commercial DIP solid-state relays. These devices are optically isolated, bi-directional components designed to switch loads with currents ranging from 0.5A to 2.5A.
The datasheet details electrical specifications including input voltage ranges, output current ratings for various part numbers (C60-10 through C60-40), and switching times. It also includes mechanical specifications such as dimensions for through-hole and surface mount configurations, along with characteristic curves illustrating performance under varying conditions.
| Isolation Type | Optically Isolated |
|---|---|
| Operating Temperature Range | -40°C to 85°C |
| Storage Temperature Range | -40°C to 100°C |
| Case Style | 6 pin dual in line, filled epoxy |
No, inductive loads must be diode suppressed to prevent damage.
The relay operates between -40°C and 85°C.
The surge current is limited to a maximum duration of 20 ms.
