This document provides information about the features and characteristics of Teledyne's products. The friendly staff of trained sales and service personnel are available to assist with any questions or help needed, accessible through a phone call or online support.

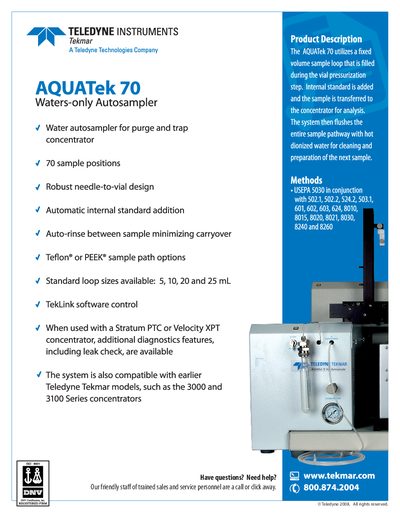

The Teledyne Tekmar AQUATek 70 is a water autosampler designed for use with purge and trap concentrators. It utilizes a fixed volume sample loop filled during vial pressurization and features an internal standard addition system. The system includes a robust needle-to-vial design and offers Teflon or PEEK sample path options to minimize carryover.
| Sample Vials | Nominal 40 mL capacity, single hole cap with Teflon faced silicone septum |
|---|---|
| Trays | Accepts either two 35 position trays or one optional 70 position vial cooling tray |
| Weight | Autosampler: 120 lbs (54.4 kg) shipping weight |
| Warranty | One year full warranty |
It is compatible with drinking water and wastewater samples containing sediment levels of up to 15 mm.
The system is controllable with a PC running TekLink software in a Windows environment.
Ultra high purity (99.999% pure) helium at 25-60 psi is required.
