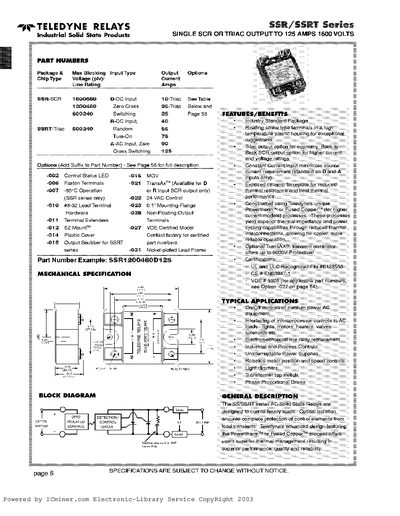

This document provides technical specifications for the Teledyne Relays SSR/SSRT Series, which are industrial solid-state products featuring single SCR or TRIAC output capabilities. The devices support blocking voltages up to 1600 Volts and currents up to 125 Amps.
The datasheet details mechanical and electrical specifications, including input control parameters, output load ratings, thermal resistance, surge current limits, and operating temperature ranges from -40°C to +85°C. It also lists available options such as status LEDs, specific terminal types, and mounting hardware.
| Max Blocking Voltage | 1600 Volts |
|---|---|
| Max Output Current | 125 Amps |
| Output Type | SCR or Triac |
| Operating Temperature Range | -40 to +85 °C |
| Thermal Resistance Junction to Case (SCR Output) | 0.35 °C/W |
| Turn-On Time | 8.3 ms |
The SSR/SSRT Series supports a single SCR or TRIAC output up to 125 Amps.
The devices are rated for a maximum blocking voltage of 1600 Volts.
The relays operate within a temperature range of -40°C to +85°C.
