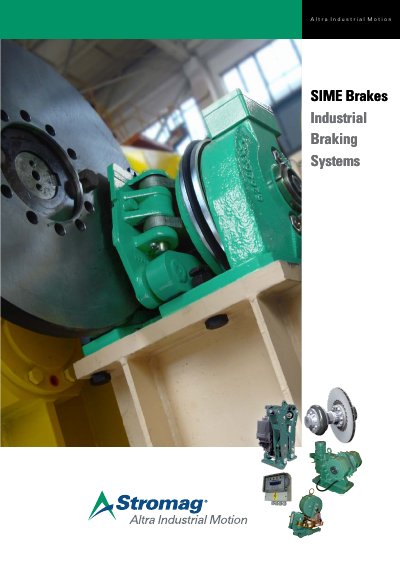

Catalog of Stromag's P-8313 -SG-A4 9/17 industrial braking systems, covering electromagnetic, hydraulic and service brake options.
Stromag presents its P-8313 -SG-A4 9/17 industrial braking systems, a family of electromagnetic, hydraulic and service brakes designed for heavy‑duty applications such as steel cranes, nuclear plants, offshore winches and elevators. The brochure details the range of brake types, available options, and technical performance data.
Key features include high braking forces, wide disc diameter ranges, fail‑safe hydraulic and electromagnetic releases, and a variety of power‑supply units. The document also lists compatible couplings, disc types, and the SideOS One monitoring module for overspeed detection.
| 2SA electromagnetic brake braking force | 100 kN |
|---|---|
| OSA electromagnetic brake braking force | 60 kN |
| Electromagnetic brake torque range | 50 – 8 000 Nm |
| Electromagnetic brake disc diameter | 175 mm – 995 mm |
| Hydraulic brake braking force | 11 – 333 kN |
| Hydraulic brake torque range | 60 – 21 270 Nm |
The 2SA electromagnetic brake provides a braking force of up to 100 kN.
Electromagnetic brake discs are offered with a standard diameter from 175 mm to 995 mm.
The SA range can be equipped with hydraulic release, breather pot, special paint, and steel cover for air‑gap seal.
Hydraulic brakes deliver a braking torque between 60 Nm and 21 270 Nm.
