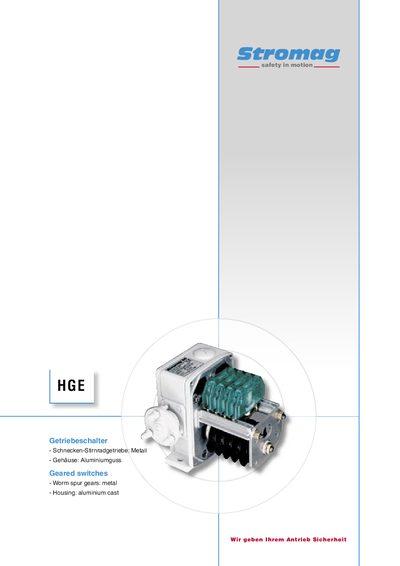

HGE Geared Switches
The document is a product catalogue for the Stromag HGE series of geared limit switches. These mechanical switching devices are designed for general industrial applications, particularly in hoisting technology, featuring a reduction gear and adjustable cam discs to actuate contacts.
| Protection class | IP 65 |
|---|---|
| Minimum temperature for contacts 51, 52, 53 | -30°C |
| Maximum cam disc angle | 320° |
| Standard cam disc diameter | 70 mm |
Yes, the HGE20 series is dimensionally fully interchangeable with the old HGE12 series.
The reduction gear reduces revolutions to a maximum rotation angle of 320° at the cam disc when using 40° cam discs.
The standard cam discs supplied have a diameter of 70 mm unless the customer specifically requests smaller ones.
The ambient temperature for the limit switch must not exceed 85°C.
